Kosaka Laboratory Ltd.

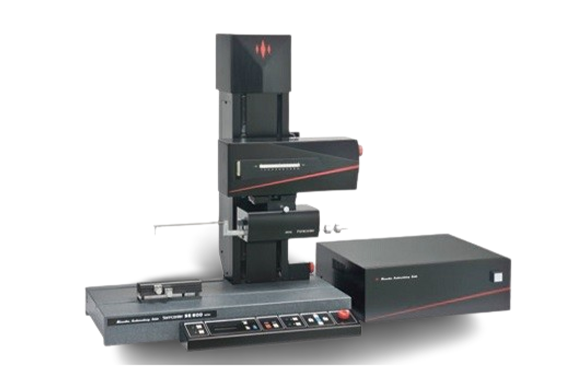

Kosaka Laboratory EF800 Series
Manufacturer: Kosaka Laboratory Ltd.
Model: EF800 Series
Features
A high-performance contour shape measuring machine that can move at ultra-high speed and has a full range of analysis functions.
- Equipped with pick-up overload halt function as standard
- Frequent use can be set by shortcut function
- Easy re-measuring is possible without remaking new program
Specification
| Z Max measuring range | EF800-G : 50 mm , EF800-N : 60 mm |
|---|---|
| X Max measuring range | 100 mm |
| Straightness | 1.0 μm / 100 mm |
| Stylus | Chisel type R25 μm 8° |
| Installation size | W 1500 x D 800 mm |
