Kosaka Laboratory Ltd.

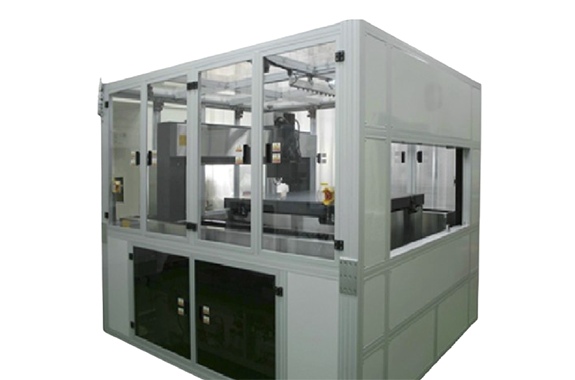

Kosaka Laboratory ET8000
Manufacturer: Kosaka Laboratory Ltd.
Model: ET8000
Features
- ET８000 can automatically measure large-size samples up to size2200 × 2600 mm application with high accuracy. Loading\Unloading sample stage is available an optional.
Specification
- Used for fully automatic measurement of large size samples
| Max. sample size | 2200 × 2600 mm |
|---|---|
| Repeatability | 1 σ 1 nm |
| Measuring range | X: 10 μm Y: 10 mm |
| Resolution | Z: 0.1 nm X: 0.1 μm |
| Measuring force | 0.5 μN to 500 μN |
