Kosaka Laboratory Ltd.

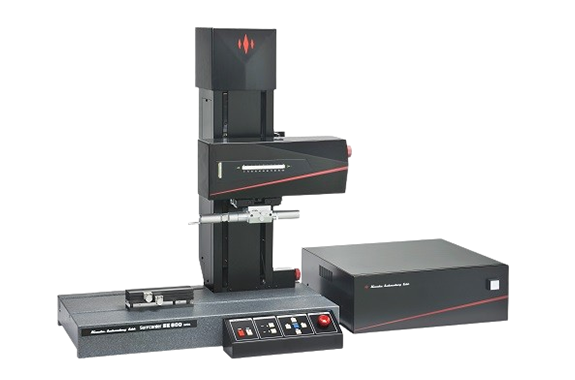

Kosaka Laboratory SE800 Series
Manufacturer: Kosaka Laboratory Ltd.
Model: SE800 Series
Features
- SE800 is complied to worldwide standards including ISO, JIS, DIN, ASME and BS, and each old and current standards. Various filters, cutoff values, measuring length and formula types are provided to meet the standards.
- Complied to worldwide standards
- Free layout of data chart
- Enabling a series of measurements in arbitrary combination with various automated measurement elements
- The refined design
Specification
| Standards | JIS(2001/94/82), DIN, ISO, ASME, etc |
|---|---|
| Measuring range | Z: 600 μm X: 100 mm |
| Measuring magnification | Z: 50-500,000 X: 1-5,000 |
| Measuring speed | 0.05 – 3 mm/s *High speed movement 30 mm / s |
| Z traverse range | 300 mm |
| Recording | Free layout |
