Kosaka Laboratory Ltd.

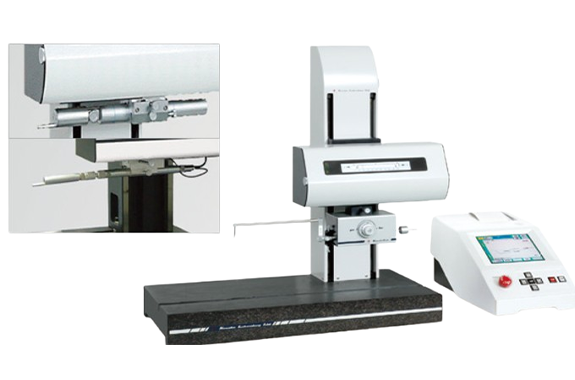

Kosaka Laboratory SEF580A-G18D
Manufacturer: Kosaka Laboratory Ltd.
Model: SEF580A-G18D
Features
Surface Roughness / Contour Measuring Instrument. Easy operation by Touch Panel. For various kind of sample.
- Surface Roughness
- Analysis : Many parameters of different standards in one measurement.(Roughness measurement)
- Contour
- High resolution (Max. Sampling points : 64,000 points) and long measuring distance.
Specificatio
Surface roughness
| Measuring range / Verticala resolution | Z: 600 μm / 0.08 nm |
|---|---|
| Drive speed | 0.02-10mm/s |
| Stylus | R2 μm 0.75 mN or Less |
Contour
| Accuracy | Z: ±0.25 % (Our Standard) X: ±(1+0.02L) μm or Less L: Measuring Length(mm) |
|---|---|
| Measuring range | Z: 50 mm X: 100 mm |
| Stylus | R25 μm 10-30 mN |
