Kosaka Laboratory Ltd.

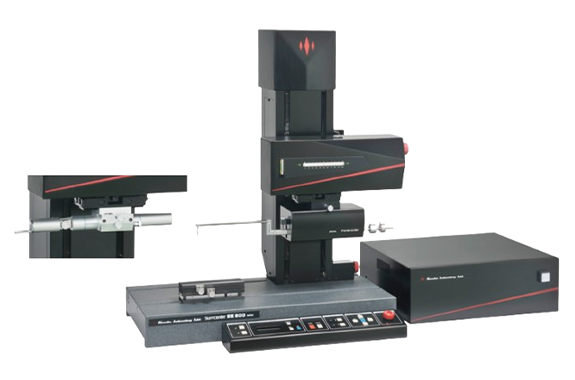

Kosaka Laboratory SEF800-N
Manufacturer: Kosaka Laboratory Ltd.
Model: SEF800-N
Features
Portable type Measuring lnstrument. Surface profile can be displayed in real time.
- Surface Roughness
- The unit can output the parameters based on multiple standards just a time.(Roughness Measurement)
- Contour
- High resolution (Max. Sampling points : 64,000 points) and long measuring distance.
Specification
Surface roughness
| Measuring range / Verticala resolution | Z: 800 μm / 0.08 nm |
|---|---|
| Drive speed | 0.05-2mm/s |
| Stylus | R2 μm 0.75 mN or Less |
Contour
| Accuracy | Z: ±(2.5+0.5×｜H｜) μm or Less H: Displacement(mm) X: ±(2.5+0.02L) μm or Less L: Measuring Length(mm) |
|---|---|
| Measuring range | Z: 30 mm X: 510 mm |
| Stylus | R25 μm 10-30 mN |
