Kosaka Laboratory Ltd.

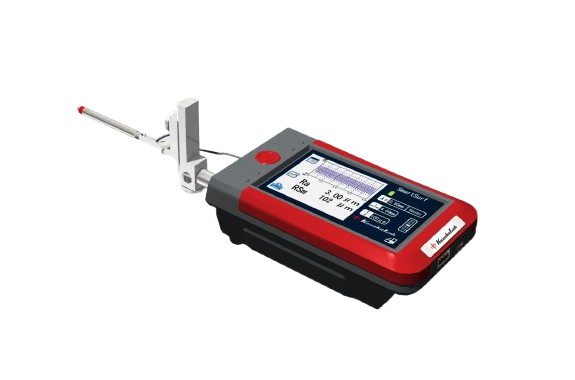

Kosaka Laboratory Smart Surf
Manufacturer: Kosaka Laboratory Ltd.
Features
- Portable surface roughness meter with extremely intuitive operation
This measuring machine is suitable for measuring narrow and deep holes due to its compact detector. - only in class Integrated structure that fits in the palm of your hand
- Smartphone feeling Automatically adjust screen orientation
- Right angle measurement with one touch
- Smartphone feeling Equipped with screenshot function
Specification
| Stylus | 5μm 90° ※option 2μm 90° |
|---|---|
| Range of detection | 400/100/10μm |
| Resolution | 50/10/5nm |
| Driving distance | 25.5mm |
| Parameters | Ra、Rz、Rp、Rv、etc |
| External dimensions・mass | W152×D87×H81mm・Approximately500g |
