Kosaka Laboratory Ltd.

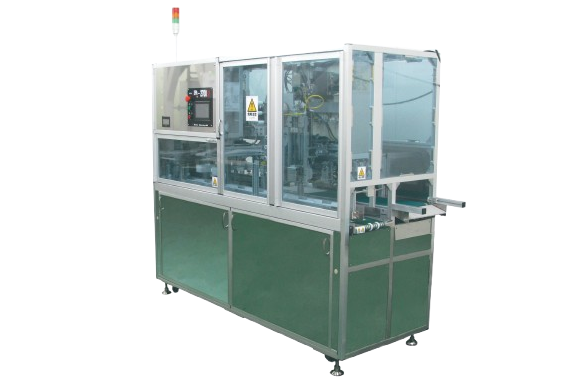

Kosaka Laboratory Tape Bundling Machine (SPA-2700SF)
Manufacturer: Kosaka Laboratory Ltd.
Model: SPA-2700SF
Features
- Built-in automatic feeder realizes binding capacity of 45 bundles per minute.
- Compatible with high-speed vertical bag wrapping machines (up to 90 bags per minute).
- Enables stable high-speed operation with a margin. U-shaped binding that opens the front is also possible.
- Softly stack two or three layers of products that you do not want to tighten with tape, and bind them securely.
- A single machine SPA-2500S (without automatic loading machine) and a reversing device, lift conveyor, and automatic pouch loading machine are also available as line configuration options.
- Applications: Vienna sausages, sausages, flat bags, purse-type bags, various packages of sliced food, hamburger steak, chikuwa (fish paste), hanpen (cake of pounded fish), noodles, etc.
Specification
| Capability | 45 bundles / minute (Max) |
|---|---|
| Dimensional range of products to be bundled | Length: 70-300 mm Width: 90-250 mm Height: 20-100 mm |
| Taping method | Overlapping on the back |
| Tape | Self-adhesive plastic tape Winding diameter: 320 mm or less Paper tube diameter: 90 mm Tape width: 20mm Tape application direction: Direction perpendicular to the transport direction of the object transport |
