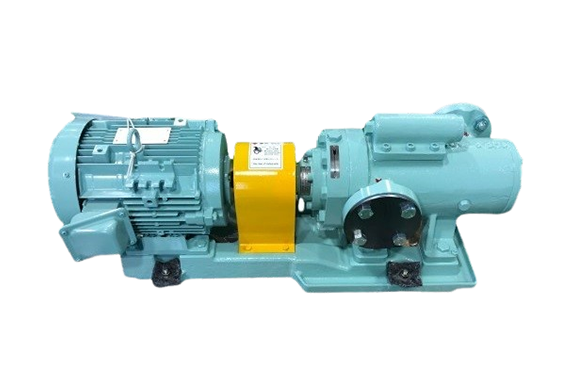

Kosaka Laboratory Three Spindle Screw Pump
Manufacturer: Kosaka Laboratory Ltd.
Features
- It is simple structure, long life, and high efficiency.
- It is low vibration and low noise.
- Suitable for low to high viscosity liquids.
- It has high suction capacity and self-priming.
- It is Low pulsating.
- It has a small rotor diameter, can rotate at high speed, and saves space.
- It can comply with various ship classes and API 676.
Specification
| Capacity | 0.5～500 ㎥/h |
| Discharge pressure | ～20MPa |
| Suction pressure | -0.05MPa～ |
| Speed | ～3600min-1 |
| Viscosity | 0.5～50000cP |
Application example
Land
| Lubrication | Various bearing lubrication |
| Burning | Boiler burning (Kerosene, Light oil, Heavy oil, etc.) |
| Pressure oil | Hydraulic drive units (Water wheel control, Machine tools, etc.) |
| Transfer | Fuel, Gas sealing oil, Asphalt, Viscose liquid, etc. |
Ship
| Lubrication | Turbine bearings, Engine bearings, Compressor bearings, Gear units, etc. *Compatible with wet screw compressors.(Suction pressure boosting) |
| Burning | Boilers (Kerosene, Light oil, Heavy oil, etc.) |
| Pressure oil | Changeable pitch propeller, Winch steering, Hydraulic drive system |
| Transfer | Fuel and various other liquids |
Main Corresponding Liquids
| Land | Lubricating oil, Hydraulic oil, Various fuel oils (Kerosene, Light oil, Heavy oil, etc.) |
| Ship | Lubricating oil, Various fuel oils (Kerosene, Diesel oil, Heavy oil, Marin gas oil, etc.) |
| Other | High viscosity special fluids (Gas seal oil, Asphalt, Viscose fluid, etc.) |
