Kyoto Tool Co.

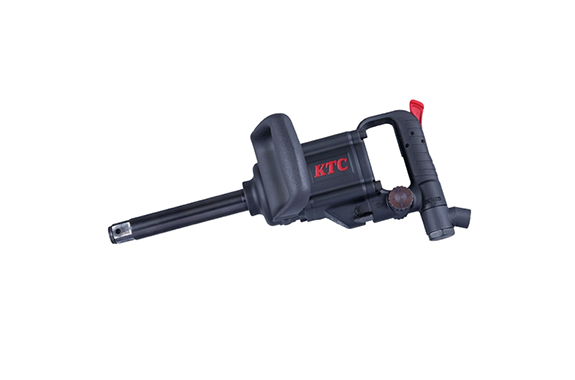

KTC JAP876 25.4sq. Impact Wrench Lightweight Type

Manufacturer: KTC.
Model: JAP876.
Features
- It is a successor model to JAP875 that is lightweight and large torque type and is effective in servicing large vehicles.
- Uses a high-power and lightweight twin hammer mechanism.
- Aluminum die-cast body is adopted.
- A teasing throttle that can adjust the rotation by pulling the trigger is adopted.
- The regulator function is adjustable in 4 steps on both the left and right.
- The side handle can be fixed at any position at 360 °.
- The anvil has a pin hole and is compatible with the AMBAC (PAT.) system, a safety mechanism developed by KTC to prevent pin slipping
- Accessories: Air coupler, oil for air tools 1 each
Specifications
25.4sq. Impact Wrench (Lightweight Type)
No.JAP876 | |
---|---|
Plug-in angle | 25.4sq. |
Maximum torque | 1900N·m |
Practical torque | 1600N·m |
Ability Bolt | M38 |
No-load speed | 0~5600rpm |
No-load air consumption | 0.18m3/min |
Air Inlet | R1/2(PT1/2) |
Inner diameter of the air hose used | 11mm or more |
Weight | 7.6kg |
* Air coupler with oil.
* Product specifications such as maximum torque are based on the standards specified by KTC. In actual work, we do not guarantee that the figure.
