Kyoto Tool Co.

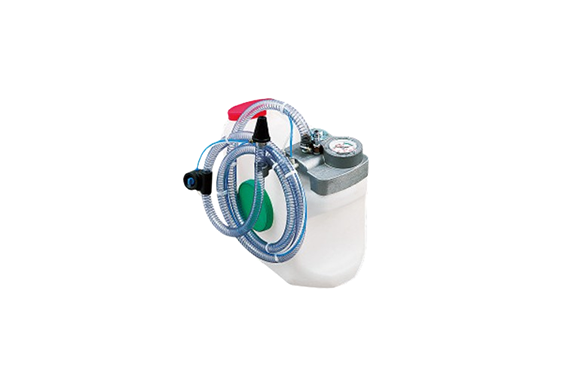

KTC AE401 Coolant Charger

Manufacturer: KTC.
Model: AE401.
Features
- Dedicated equipment for injecting cooling water from mini vehicles to ordinary passenger cars and 1.5t class light trucks. Vacuuming does not allow air to be mixed in, and cooling water can be injected quickly.
- Optional cone plug L size (AE401-CPL) can be applied to foreign vehicles with a radiator cap inner diameter of 34 ~ 40 mm.
- The tank and the main body can be attached and detached, and by using the spare tank (AE401-ST) sold separately, it can be used for injection work of different cooling water (e.g., red and green, etc.).
- No need to adjust the pressure of the input air. You can switch between vacuuming and injection at hand.
- Can be used for both downflow radiators and side-flow radiators.
Specifications
No.AE401 | ▼kg 4.5 |
---|---|
W×D×H | 420×300×450mm |
Hose length | 2.5m |
Usable tank capacity | 15 liters |
Tank Material | polyethylene |
Vacuum degree (ultimate pressure) | Approx. -0.09 MPa |
Air consumption | Approx. 120~190 l/min |
Applicable Pneumatics | 0.6~0.7MPa |
Operating environment temperature | 7~50°C |
Air Coupler | Nitto Kohki 20PM equivalent |
