Kyoto Tool Co.

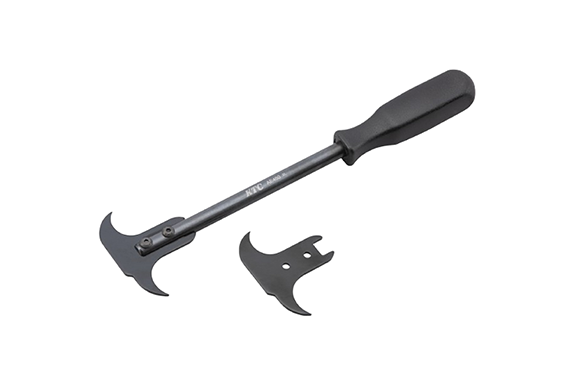

KTC AE460 Oil Seal Puller
Manufacturer: KTC.
Model: AE460.
Features
- Dedicated tool for extracting oil seals.
- Ideal for pulling out oil seals on axles of large agricultural machinery and crawler drive parts.
- The cutting edge can be hung on the oil seal and easily pulled out by the principle of leverage.
- Efficient work can be done by using different sizes of left and right blades according to the size of the oil seal and the work environment.
- The oil seal corresponds to the inner dimension φ38~70mm.
- Comes with 1 replacement blade.
Specifications

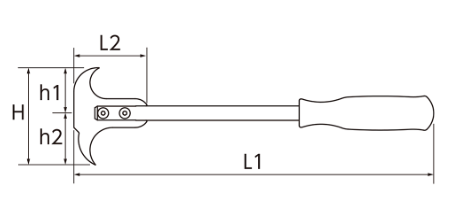

| No. | L1 | L2 | H | H1 | H2 | Blade thickness | Weight (g) |
|---|---|---|---|---|---|---|---|
| AE460 | 315 | 64 | 84.5 | 40 | 44.5 | 3 | 440 |
