Kyoto Tool Co.

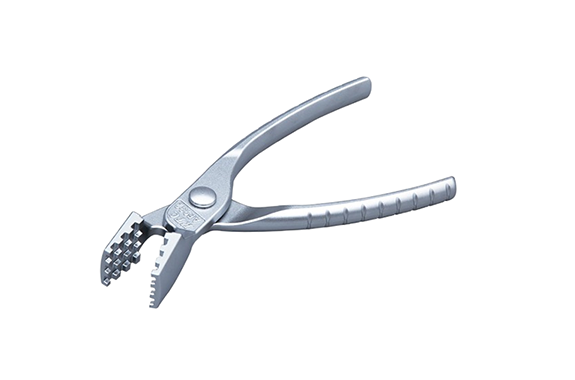

KTC AE932 Hose Clip Pliers Short Vent Type

Manufacturer: KTC.
Model: AE932.
Features
- This is a dedicated tool for attaching and detaching the spring-type hose clip that fixes the cooling system hose of the automobile.
- Can be used for leaf spring type hose clips used for hose outer diameter 10 ~ 36 mm.
- Since the teeth have a grid-shaped chevron edge, the hose clip does not slip and is difficult to come off, and can be used in narrow or deep places.
- The tooth part has a trapezoidal shape and can be used in any direction, vertically, horizontally, and diagonally.
- Both grip and teeth are more compact than the standard type AE931. By setting a 35-degree angle to the tip, it is possible to work by inserting it all the way in, avoiding pipes and stays.
Specifications
No. | Applicable Hose Outer Diameter | L | e | W1 | W2 | T | B1 | B2 | ▼g |
---|---|---|---|---|---|---|---|---|---|
AE931 | 10~47 | 210 | 34.5 | 48 | 12 | 9 | 25 | 20 | 310 |
