Kyoto Tool Co.
KTC ATE1055 Belt Replacement Wrench Set for Suzuki Double Tensioner
Manufacturer: KTC.
Model: ATE1055.
Features
- This is a set of tools that turn the crankshaft pulley and autotensioner when replacing the belt of a vehicle equipped with a mild hybrid (R06A type engine + WA05A type ISG), such as Suzuki Spacia (MK53S) and Wagon R (MH55S) released after February 2017.
- Even in small areas of the work space, it is possible to work reliably with an optimal working posture.
- Three Suzuki special tools (drive belt remover 09991-07410, drive belt installer No. 2 09991-07440, and drive belt installer No. 3 09991-07470) are required to remove and install the water pump drive belt.

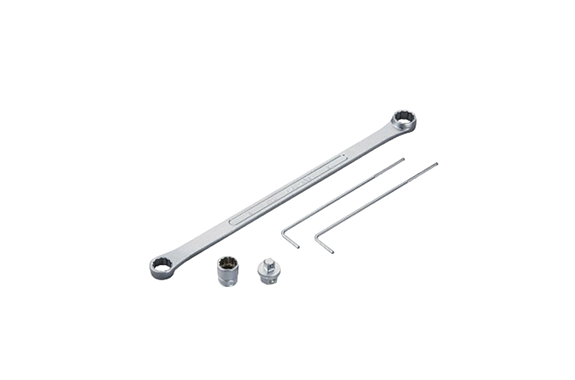

Specifications
| No.ATE1055 | Number of points: 5 points ▼kg 0.7 |
|---|---|
| Super long straight glasses wrench | M160-19×21 |
| Tensioner Hold Pin | AE105-4 (2 pieces) |
| 9.5sq. drive | AE107-3A |
| 9.5sq. Socket (12 Corners) | B3-17W |
