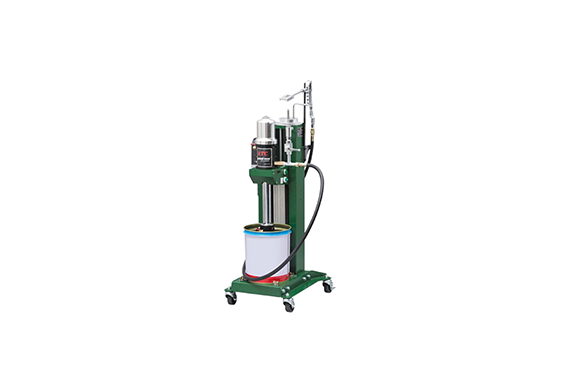

KTC AVG350 Air Grease Feeder

Manufacturer: KTC.
Model: AVG350

Features

  • It is a grease injection equipment when replenishing grease such as tapered roller bearings for medium-sized vehicles ~ large vehicles (4t~10t).
  • It can also be used for grease injection of tapered roller bearings in industrial equipment, transportation equipment, vehicle equipment, etc.
  • Equipped with two regulators, the input side and the user side, to prevent malfunction and damage twice.
  • The inner pig is firmly pressed to the bottom of the grease can, and the remaining amount (sucking residue) in the grease can is reduced.
  • It is not easy to empty and shorten the working time.
  • It comes with two types of nozzle adapters for efficient work.
  • Hoses, guns, nozzle adapters, and straight adapters are not eligible for repair.
  • Appacone AVG350-2, straight adapter AVG350-6, nozzle and adapter set AVG350-7, and 4-piece nozzle set AVG35-7-7 are set as supply parts.
  • Grease and the pail in the photo are not included in the product.

Specifications

No.AVG350
Pumping systemAir-driven
Drive Sourcecompressed air
Input Air Pressure0.4~0.9MPa
Maximum dispensing pressure40.5MPa
Compression ratio45:1
Pump stroke65mm
Application GreaseNLGI No.0~No.3
Application Grease Can16kg (Recommended can inner diameter 265~285mm)
Airautomaticdischarge
EulerCapacity 25ml
Hose Length2.5m
Operating Ambient Temperature0℃~40℃
Grease temperature used-10℃~40℃
External dimensions (lower pump limit)1,390×560×580
weight80kg
