Kyoto Tool Co.

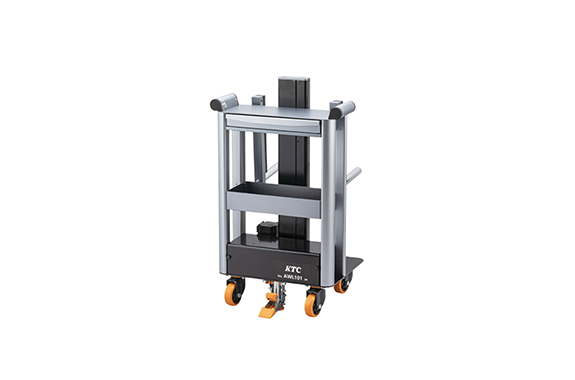

KTC AWL101 Tire Lifter

Manufacturer: KTC.
Model: AWL101
Features
- Assists in the lifting and lowering of tires with an electric tire lifter.
- The adoption of aluminum structure realizes stable work by reducing light weight and reducing the center of gravity.
- Tire lifting and lowering is operated with a two-hand switch. It prevents pinching and allows you to work safely.
- The rotating rod and damper of the tire lifter part make it easy to fine-tune the tire position with light force.
- Uses a rechargeable battery (sold separately). No air piping is required and cordless for seamless movement through tight workspaces.
- Maximum lifting distance: 730mm, maximum load capacity: 40kg, number of continuous lifting: about 300 round trips (the number of times varies depending on the environment used and the battery).
- With drawers that can store tire changes and other tools necessary for undercarriage work.
- By attaching optional products, you can store the tools necessary for tire change work in bulk.
- This product does not come with a battery. (Required number: 2 pieces)

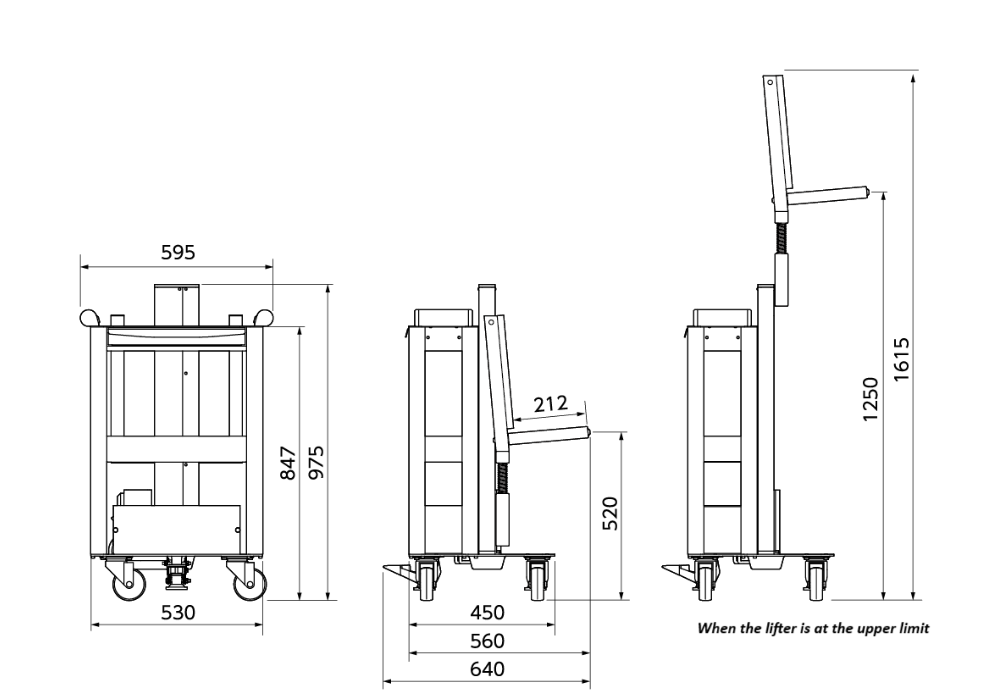

Specifications
No. | Lifter maximum load capacity | Applicable tire outer diameter | mass |
---|---|---|---|
AWL101 | 40kg | 550~790mm | 61.5kg |
