Kyoto Tool Co.

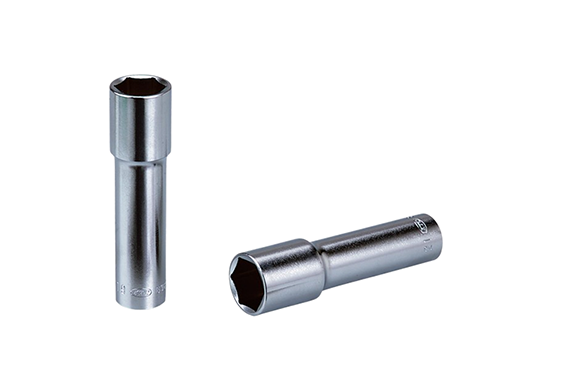

KTC B38Z Series 12.7sq. Wheel nut socket
Manufacturer: KTC.
Model: B38Z-17H, B38Z-19H, B38Z-21H& B38Z-22H
Features
- This is a special socket used for tightening and loosening automobile wheel nuts.
- It is a special design for wheels with a total length of 100mm.
- It comes with a rubber cushion that is friendly to plating nuts and painted nuts.
Specifications

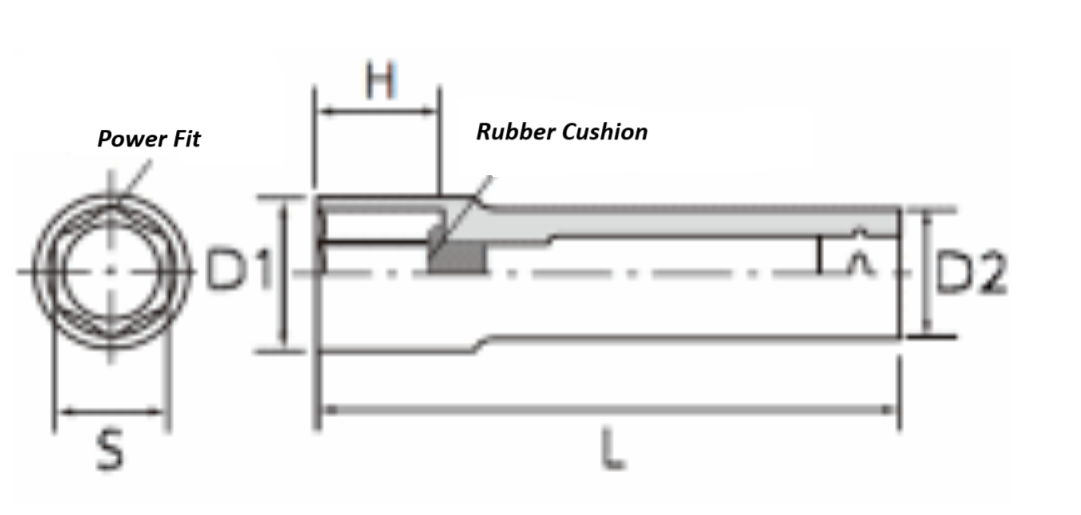

| No. | S (Hex) | D1 | D2 | H | L | ▼g |
|---|---|---|---|---|---|---|
| B38Z-17H | 17 | 24 | 22 | 22 | 100 | 200 |
| B38Z-19H | 19 | 26 | 22 | 24 | 100 | 200 |
| B38Z-21H | 21 | 27.5 | 22 | 26 | 100 | 200 |
| B38Z-22H | 22 | 29.5 | 22 | 27 | 100 | 200 |
