Kyoto Tool Co.

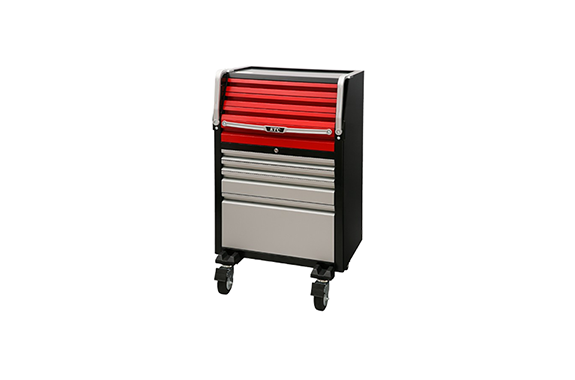

KTC EKX-118Roller Cabinet 8 Tiers, 8 Drawers
Manufacturer: KTC.
Model: EKX-118.
Specifications
| No. | W | H1 | H2 | D1 | D2 | Body volume | Storage volume | ▼kg |
|---|---|---|---|---|---|---|---|---|
| EKX-118 | 740 | 1,050 | 1,230 | 540 | 680 | 337L | 203L | 110 |
- 6 dividers× 8 drawer mats× 2 keys×
| 1st ~ 3rd stage | Width 600 | × | Depth 325 | × | Height 55 | Load capacity: 15kg |
|---|---|---|---|---|---|---|
| 4th stage | Width 600 | × | Depth: 410~435 | × | Height 100 | Load capacity: 20kg |
| 5th ~ 6th stage | Width 600 | × | Depth 410 | × | Height 40 | Load capacity: 15kg |
| 7th stage | Width 600 | × | Depth: 410~435 | × | Height 100 | Load capacity: 20kg |
| 8th stage | Width 600 | × | Depth: 410~435 | × | Height 290 | Load capacity: 30kg |

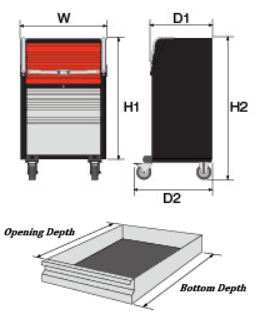

* The depth of the 4th and 7th ~ 8th steps differs in size between the opening and the bottom. (See figure on the right)
