Kyoto Tool Co.

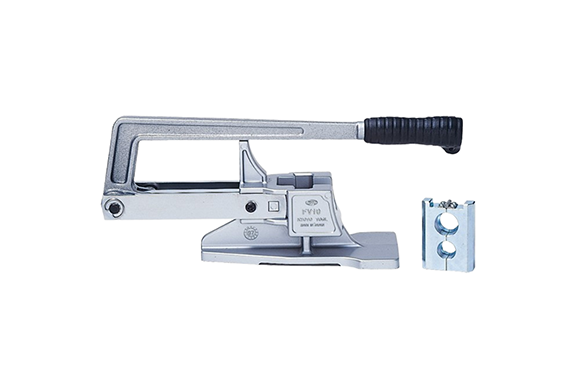

KTC FV10 Flex Rubber Dispensing Tool for 3-pile-forming Only
Manufacturer: KTC.
Model: FV10.
Features
- Sealing surface manufacturing tool for stainless steel flex pipe connection for water supply and water supply.
- Applies to stainless steel flex pipes, nominal 13 and 20 (excluding spiral shape).
- Just by pressing down on the handle, you can quickly and efficiently pull out the brim.
Specifications
| No. | L | W | H | ▼kg |
|---|---|---|---|---|
| FV10 | 350 | 90 | 145 | 3.7 |
| call | Peak diameter | Valley Diameter | Thickness |
|---|---|---|---|
| 13(1/2″) | φ15.8～φ17 | φ12～φ14 | 0.3㎜ |
| 20(3/4″) | φ19.5～φ21 | φ15.9～φ17.8 | 0.3㎜ |
