Kyoto Tool Co.

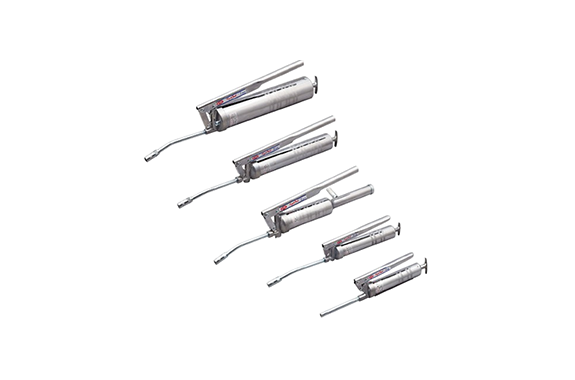

KTC G-80, G-100, G-300& G-500 Grease Gun
Manufacturer: KTC.
Model: G-80, G-100, G-300& G-500.
Features
- Various nozzles (G-120NS ~ 330NH) that can be exchanged according to the application are set.
- Pin type and button head type nipples are not applicable. * Applicable grease nipple (JIS B 1575)
- This product is not subject to repair.
Specifications
| No. | Capacitance cc | Discharge capacity per single ㎤ | Maximum discharge pressure MPa | D | L | Included nozzle No. | Weight (g) | Number of pieces |
|---|---|---|---|---|---|---|---|---|
| G-80 | 80 | 0.6 | 20 or more | 32 | 215 | G-120NS | 400 | 10 |
| G-100 | 100 | 0.7 | 20 or more | 38 | 245 | G-190NC | 550 | 10 |
| G-300 | 300 | 0.75 | 20 or more | 48 | 315 | G-190NC | 930 | 10 |
| G-500 | 500 | 0.75 | 20 or more | 63 | 345 | G-190NC | 1,250 | 10 |
