Kyoto Tool Co.

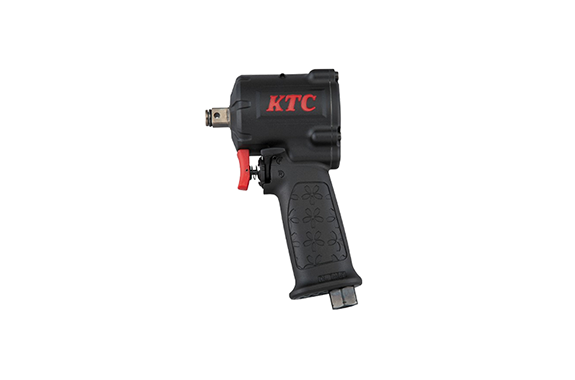

KTC JAP418 12.7sq. Impact Wrench Flat Nose Type
Manufacturer: KTC.
Model: JAP418.
Features
- A compact and high-power single hammer model.
- Due to the integrated structure of the hammer case and housing, the total length is shortened by about 11mm compared to our conventional product (JAP417), and the maximum torque is increased by about 10% by increasing the size of the hammer.
- Since the rotation switching lever can be repositioned to the left and right, one-handed operation is possible regardless of whether you are right-handed or left-handed.
- The regulator can be adjusted in 3 steps when rotating to the right.
- Teasing throttle that can adjust the number of revolutions depending on the pull of the trigger.
- Compatible with the AMBAC (PAT.) system, a safety mechanism developed by KTC to prevent pin loss from falling out.
Specifications
12.7sq. Impact wrench
| No.JAP418 | |
|---|---|
| Plug-in angle | 12.7sq. (with pin holes) |
| Maximum torque | 600N·m |
| Ability Bolt | M16 |
| No-load speed | 8,800rpm |
| No-load air consumption | 0.13m3/min |
| Air Inlet | R1/4(PT1/4) |
| Inner diameter of the air hose used | 8mm or more |
| Housing Material | Aluminum |
| Weight | 1.3kg |
–Air coupler (equivalent to Nitto Kohki 20PM), with oil for air tools.
* Product specifications such as maximum torque are based on the standards specified by KTC. In actual work, we do not guarantee that the figure.
* The maximum torque is when rotating to the left. The torque of right-hand rotation is more than 10% less than left-hand rotation.
* Left rotation cannot be adjusted by the regulator. It can be adjusted depending on the pull of the trigger.
