Kyoto Tool Co.

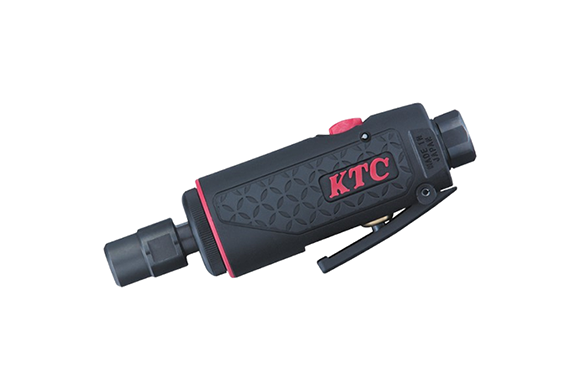

KTC JAP520 Straight Grinder High Speed Type

Manufacturer: KTC.
Model: JAP520.
Features
- A full composite housing is adopted, and the overall length is shortened by 10% compared to conventional products (according to our research). It is a straight grinder that achieves a lightweight and compact body size.
- The rotation of the motor is the rotation of the shaft as it is, and high-speed rotation is realized. It is ideal for deburring using advanced tools such as grinding wheels and carbide bars, parts processing and modification, metal processing and polishing, etc.
- With a stepless adjustable regulator mechanism.
- A teasing throttle that can adjust the rotation by pulling the trigger is adopted.
- A low-speed, high-torque type JAP510 is also available.
- Advanced tools are not included.
Specifications

| No.JAP520 | |
|---|---|
| Collet chuck diameter | 6mm |
| No-load speed | 25,000rpm |
| No-load air consumption | 0.38m3/min |
| Air Inlet | R1/4(PT1/4) |
| Inner diameter of the air hose used | 8mm or more |
| Recommended hose part number | JAH-080 |
| Weight | 320g |
Air coupler, 1 oil for air tools, 2 special wrenches included.
