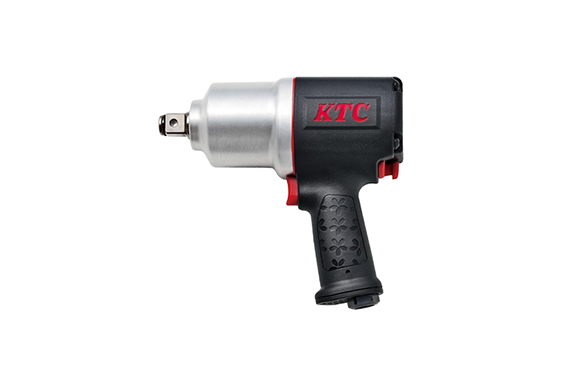

KTC JAP651 19.0sq. Impact Wrench Composite Type

Manufacturer: KTC.
Model: JAP651.

Features

Environmentally friendly, low-noise, low-air consumption type lightweight impact wrench with a special reinforced resin body.
Weight reduction is achieved by adopting an aluminum hammer case and composite material (special reinforced resin).
High power of up to 1600 N·m, comparable to the inch class, by adopting a twin hammer with excellent stability, durability, and efficiency.
The regulator can be adjusted in 4 steps when rotating to the right.
A teasing throttle that can adjust the number of revolutions depending on the pull of the trigger is adopted.
360° siebel inlet to prevent hose twisting.
One-push switching button that allows you to switch the direction of rotation with one hand.
Compatible with the AMBAC (PAT.) system, a safety mechanism developed by KTC to prevent pin loss from falling out.

No.JAP651
Plug-in angle	19.0sq. (with pin holes)
Maximum torque	1600N·m
Ability Bolt	M33
No-load speed	5,000rpm
No-load air consumption	0.16m³/min
Air Inlet	R3/8（PT3/8）
Inner diameter of the air hose used	11mm or more
Weight	3.3kg

* Air coupler (Nitto Kohki 30PM equivalent) and air tool oil are included.

* Product specifications such as maximum torque are based on the standards specified by KTC. In actual work, we do not guarantee that the figure.

* The maximum torque is when rotating to the left. The torque of right-hand rotation is more than 10% less than left-hand rotation.

* Left rotation cannot be adjusted by the regulator. (Adjustable by pulling the trigger)
