Kyoto Tool Co.

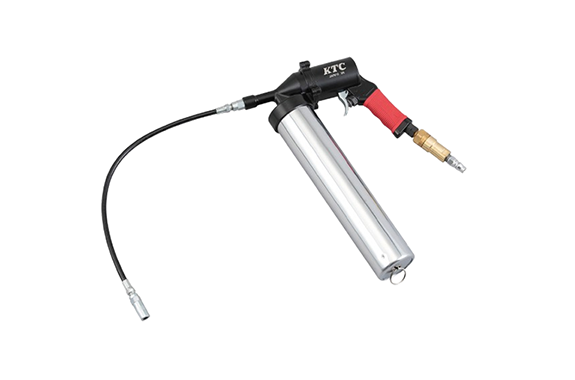

KTC JAP910 Air Grease Gun
Manufacturer: KTC.
Model: JAP910.
Features
- A special tool that injects grease into the grease nipple with air drive.
- Air drive does not require force for injection, and continuous dispensing work is possible just by pulling the trigger.
- Compatible with 400g cartridge grease (bellows type) and 500g (hand-packed).
- Equipped with an air regulator that allows you to work safely even in a high-pressure environment.
- Flexible nozzle that bends freely is included.
- By replacing it with a grease gun nozzle (1,000mm long nozzle) (G-1000NH), you can easily inject into recessed areas.
- Air coupler PT1/4
Specifications
| No. | JAP910 |
|---|---|
| method | air-driven |
| Input air pressure | 0.4~0.9MPa (Recommended air pressure: 0.62MPa) |
| Applied grease | NLGI No.0～2 |
| capacity | 400g (cartridge grease), 500g (hand-packed) |
| Discharge Capacity | 212g/min (Grease temperature: 25°C) |
| Maximum working pressure | 0.83 MPa (Recommended working pressure: 0.62 MPa) |
| Operating environment temperature | -10℃～50℃ |
| mass | 1.7kg (main unit, flexible nozzle, air regulator, air coupler) |
