Kyoto Tool Co.
KTC JTAE951 Cordless Torcia Wrench Set
Manufacturer: KTC.
Model: JTAE951.
Features
- For tightening trousia bolts used in the construction of buildings, assembling steel structures such as bridges.
- The industry’s first Torsia wrench supports M16 ~ M24 with one unit.
- It is possible to respond to each trousia bolt just by replacing the outer / inner socket.
- The number of continuous uses with a full charge is M22 ≈ 350 bottles, M24 ≈ 250 or more can be used.
- With 90 ° × 4-step swing mechanism (bolt fixing type).
- With a counter mechanism, it is also possible to check the number of bolts tightened.
- High service life by adopting brushless motor.
- Only the main body (JAE951) that does not come with a charger, battery, or special resin case is also set.
- The battery and charger are not subject to repair.

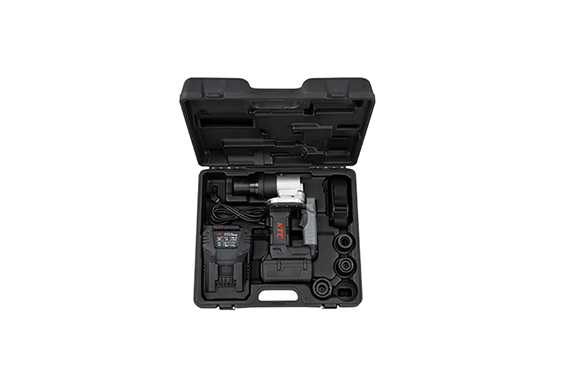

- Comes with a special resin case
- 90°× with 4-step swing mechanism (bolt fixing)
Specifications
| No.JTAE951 | |
|---|---|
| method | Cordless Rechargeable Electric Torcia Wrench |
| Input voltage | 36V DC |
| torque | 1,100N・m ±15% |
| No-load speed | 15rpm |
| Lithium-ion battery | 36V DC 6Ah |
| Body size (including battery) | W266.6×D108×H353.3mm |
| Dedicated resin case | W514×D453×H159mm |
| weight | 13.5kg (body 6.5kg, battery pack 1.3kg, charger 1.1kg) |
| Set Contents | |
| Main unit (JAE951)×1 | |
| Battery pack (JBE36060) ×1 | |
| Charger (JHE360) ×1 | |
| Power Cord×1 | |
| Inner socket (M16, M20, M22, M24) ×1 | |
| Outer socket (M16, M20, M22, M24) ×1 | |
| Carrying strap×1 | |
| Special resin case×1 |
| JBE36060 Battery Specifications | |
|---|---|
| Rechargeable battery | Lithium-ion |
| Voltage & Capacity | 36V DC 6Ah |
| Charging time | Approx. 70 minutes (quick charging type) |
| charger | Lithium-ion charger |
| Input power | AC 100V～240V 50/60Hz |
