Kyoto Tool Co.
KTC JYDC-2 Die Flow
Manufacturer: KTC.
Model: JYDC-2.
Features
- Since the air pressure can be released, the air tool can be safely and easily attached and detached.
- Because of the ball valve structure that does not reduce the flow rate of air compared to general couplers, the performance loss of the air tool can also be prevented.

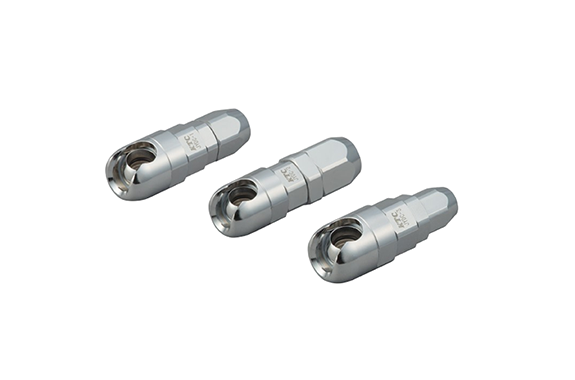

- We have a lineup of 3 items with different applicable hose sizes.
- The application of urethane hose for KTC air tools is as follows.
- JYDC-1：JAH-080
- JYDC-2：JAH-110
- JYDC-3：JAH-065
Specifications
| No. | Applicable Hose | L | D | A | S1 | S2 | ▼g |
|---|---|---|---|---|---|---|---|
| JYDC-1 | Inner diameter 8.5× Outer diameter 12.5 | 68 | 25 | 6.5 | 19 | 19 | 134 |
| JYDC-2 | Inner diameter 11× Outer diameter 16 | 73 | 25 | 9.5 | 23 | 23 | 158 |
| JYDC-3 | Inner diameter 6.5× Outer diameter 10 | 66 | 25 | 5.7 | 19 | 16 | 116 |
Common Specifications
| Body material | Steel |
| Maximum operating pressure | 1.5MPa |
| Pressure resistance | 2.0MPa |
| Seal Material | Nitrile rubber |
| Operating temperature range | -20℃～60℃ |
