Kyoto Tool Co.

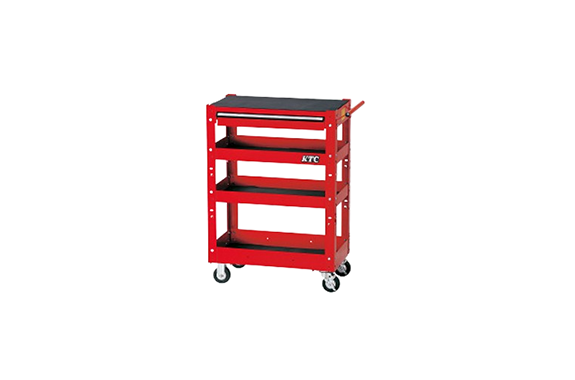

KTC SKX2704 Wagon 4 Tiers, 1 Drawer

Manufacturer: KTC.
Model: SKX2704.
Features
- Free casters with stoppers (two wheels) and fixed casters (two wheels). (φ100×30mm)
Chests can be added. SKX0213, SKX0213S, SKX0213BK, etc. can be placed on a baking sheet. (Top load capacity 20 kg)
Drawers use bearing rails that can be opened and closed smoothly.
The two tiers of the intermediate shelf can also lower the mounting position by about 100 mm.
Product weight: 29 kg
Top plate load capacity: 20 kg
Drawer size: W570×D275×H65×1 (load capacity: 5 kg)
Intermediate shelf size: W705×D400×H60× 2 shelves (load capacity: 15 kg)
Bottom shelf size: W705×D400×H90 (load capacity: 20kg)
Accessories: Top plate, shelf mat ×4, drawer mat × 1
It will be assembled by the customer.
Specifications

Wagon (4 tiers, 1 drawer)
| No. | W | D | H | ▼kg |
|---|---|---|---|---|
| SKX2704 | 715 | 410 | 1011 | 29 |
