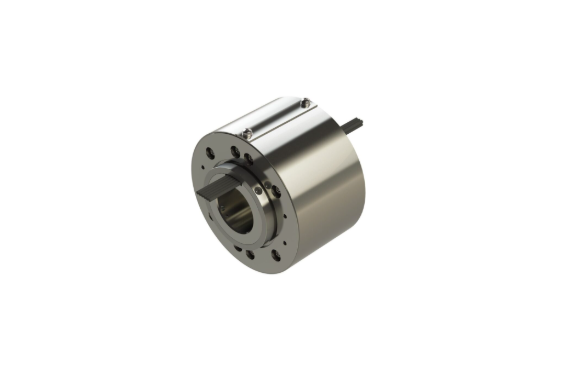

Kyoei Electric Co., Ltd. SRC120 Slip Ring
Manufacturer: Kyoei Electric Co., Ltd.
Model: SRC120
Features
- This standard product is designed with an inner diameter of 40 mm and is compatible with 20 A.
- A wide range of applications can be supported, from power and signals to high-speed data communication.
Specifications
| Number of poles | 2 to 24 poles |
| Voltage | AC/DC 220V or less |
| Allowable current | 20A |
| Allowable rotation speed | 800rpm |
| Inner diameter/Outer diameter | 40mm/120mm |
| Environmental compliance | RoHS2 compliant |

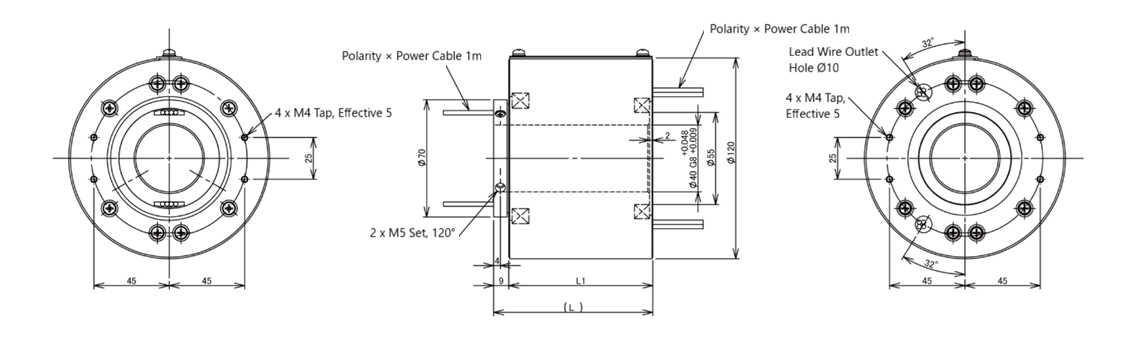

◆ Dimensions
| Number of Poles | Length |
| 2 | 50 |
| 4 | 62 |
| 6 | 74 |
| 8 | 86 |
| 10 | 98 |
| 12 | 110 |
| 14 | 122 |
| 16 | 134 |
| 18 | 146 |
| 20 | 158 |
| 22 | 170 |
| 24 | 182 |
