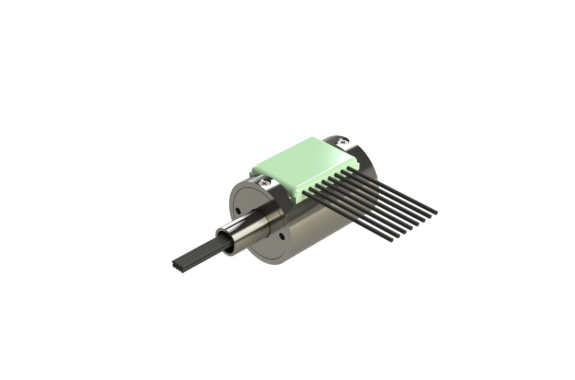

Kyoei Electric Co., Ltd. SRC30V Integrated Shaft End Slip Ring
Manufacturer: Kyoei Electric Co., Ltd.
Model: SRC30V
Features
- The product is maintenance-free and can be used up to 100 million revolutions per minute.
- This high-performance product offers a 50% improvement in rotational life and a threefold increase in allowable rotational speed compared to conventional products.
- With its compact body, 2A power supply, and compatibility with sensors such as strain gauges and thermocouples, the product can be used for a wide range of applications.
Specifications
| Number of Poles | 4 to 20 poles |
| Voltage | AC/DC 100V or less |
| Allowable Current | 2A |
| Allowable Rotation Speed | 1200 rpm |
| Inner Diameter / Outer Diameter | 10 mm / 30 mm |
| Environmental Compliance | RoHS2 compliant |

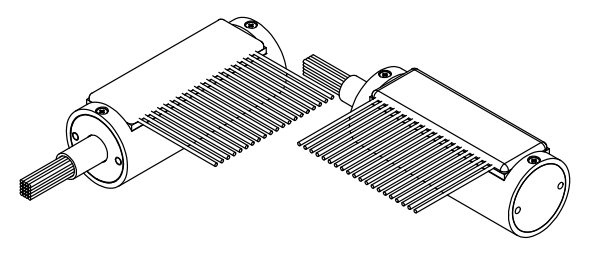

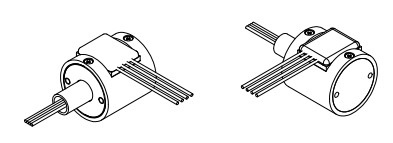

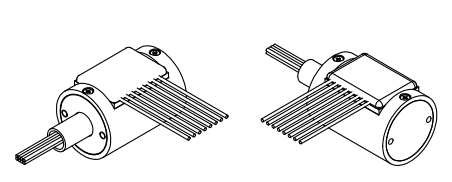

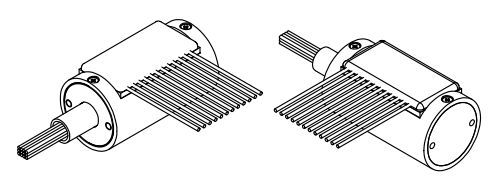

◆ Dimensions
| Number of poles | Length |
| 4 | 30 |
| 8 | 42 |
| 12 | 54 |
| 16 | 66 |
| 20 | 78 |
