Kyowa Kogyo Co.

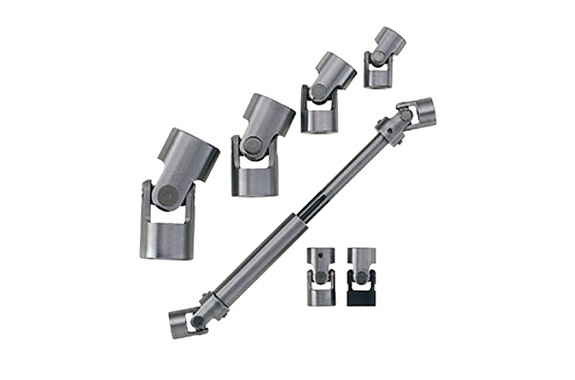

Kyowa Kogyo FP Type Non-Lubrication, General-Purpose Compact Cross Type
Manufacturer: Kyowa Kogyo Co., Ltd.
Model: FP Type
Features
- While the S series is suitable for use under relatively high torque conditions, the F series is suitable for use under conditions of high rotational speed, and is a series that is free of refueling and maintenance. “Bearing type”
- Inner Diameter 16~40mm
- Compact design
- General-purpose compact cross type with excellent rotational accuracy
- High-speed, continuous operation without lubrication
- Additional work on the main unit is possible
Specifications
| Model number | 08 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 30 | 35 | 40 | 45 | 50 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 168 | 177 | 225 | 240 | 308 | 327 | 344 | 360 | 405 | 464 | 515 | 574 | 637 | 697 |
| L1 | 268 | 277 | 420 | 435 | 418 | 437 | 459 | 475 | 640 | 634 | 675 | 714 | 757 | 792 |
| L2 | — | — | 510 | 525 | 538 | 557 | 604 | 630 | 615 | 839 | 910 | 984 | 1057 | 1127 |

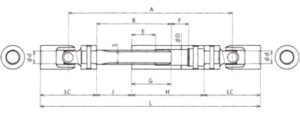

Dimensions (mm)
