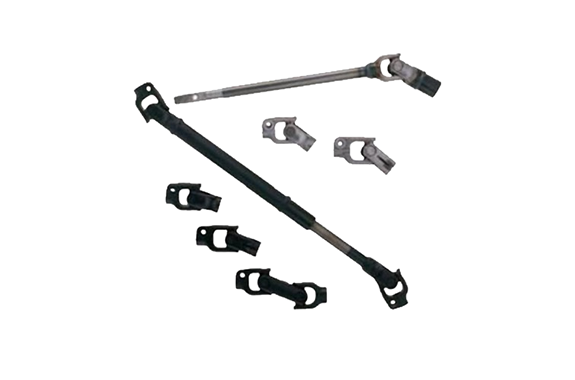

Kyowa Kogyo H Series Cold Forged Steering Joints
Manufacturer: Kyowa Kogyo Co., Ltd.
Model: H Series
Features
- As input torque increases with the adoption of column-assisted electric power steering, the yoke—an essential component of the steering joint—requires both high rigidity and flexibility.
- Cold-forged yokes provide higher rigidity than steel plate pressed yokes due to the fiber flow effect, and at the same time, they offer superior toughness (flexibility) compared to hot-forged yokes.
- For this reason, cold forging is selected to achieve an optimal balance of strength and flexibility.

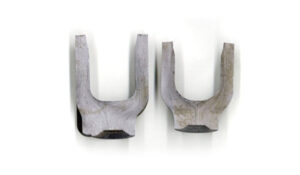

Fiber Flow
Specifications
| Items | General Requirements | Kyowa power value | Automobile manufacturer company A standard | Automobile manufacturer B company standard |
|---|---|---|---|---|
| bendableangleomnidirectional | 35° | 45°62 ° *Wide angle specification | 45° or more | 60° or more |
| Cross direction | 90° | 90° | —- | —- |
| Bending torque | 0.02~0.14N.m | Indoor Specification 0.02~0.14N.m Outdoor Specification 0.08~0.20N.m | 02~0.35N.m | Less than 0.2N.m |
| Rotational direction torque measurement ±1N.m | Under 15 | 3~7 | Under 15′ | Under 10 |
| Needle bearing slippage | More than 2000N | 4900~5600N After Endurance Test | After 2500N or more endurance test | More than 2000N |
| Bolting torque | 28N.m | 28N.m +20% *Standard specification 36N.m +20% *High rigidity specification | 20~30N.m | 28N.m +20% *Stamped products 36N.m +20% *Forgings |
| Breaking torque | Manual specification 440N.m or more Power steering specification 300N.m or more | 440~500N.m | More than 300N.m | More than 350N.m |
| Encapsulated grease | General Specification Albania EP2 equivalent (JIS K 2220 CLASS 1 NO.2) | |||
| Oil Seals | General Specification NBR (Indoor Specification and Outdoor Specification Available) | |||
