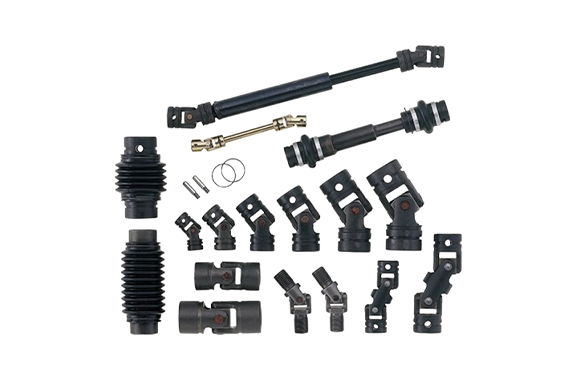

Kyowa Kogyo ND Type General-Purpose And Spinning Top Type
Manufacturer: Kyowa Kogyo Co., Ltd.
Model: ND Type
Features
- It is a popular top-type joint with a wide range of applications.
- A compact design is achieved while demonstrating high transmission capacity.
- It is a double type that can be installed in narrow places.
Specifications
| Items | Acceptable Condition Variables | Allowable Rotational Speed (min-1) | Allowable Operating Angle (°) | Allowable Torque (N.m) | Static breakdown torque (N.m) | Static tensile breakdown load (N) | GD 2 (kg.cm2) | Mass (g) |
|---|---|---|---|---|---|---|---|---|
| Product number | ||||||||
| ND-06-00 | 28,000 | 1,800 | One side 30 | 3.96 | 12 | 5,300 | 0.029 | 30 |
| ND-08-00 | 42,000 | 1,500 | One side 30 | 8.58 | 26 | 7,840 | 0.069 | 50 |
| ND-10-00 | 70,000 | 1,300 | One side 30 | 20.1 | 61 | 13,000 | 0.21 | 95 |
| ND-12-00 | 106,000 | 1,100 | One side 30 | 33 | 100 | 23,000 | 0.55 | 180 |
| ND-14-00 | 133,000 | 1,000 | One side 30 | 46 | 140 | 26,000 | 1.0 | 250 |
| ND-16-00 | 175,000 | 900 | One side 30 | 76 | 230 | 39,000 | 2.3 | 410 |
| ND-18-00 | 203,000 | 800 | One side 30 | 96 | 290 | 44,000 | 3.7 | 550 |
| ND-20-00 | 239,000 | 700 | One side 30 | 129 | 390 | 52,000 | 5.7 | 690 |
| ND-22-00 | 302,000 | 650 | One side 30 | 185 | 560 | 68,000 | 9.1 | 940 |
| ND-25-00 | 356,000 | 600 | One side 30 | 248 | 750 | 81,000 | 15 | 1,240 |
| ND-30-00 | 465,000 | 550 | One side 30 | 363 | 1,100 | 100,000 | 31 | 1,775 |
| Angle | Below 5° | 10° | 15° | 20° | 25° | 30° |
|---|---|---|---|---|---|---|
| Angular coefficient | 1.00 | 1.05 | 1.18 | 1.43 | 1.82 | 2.50 |

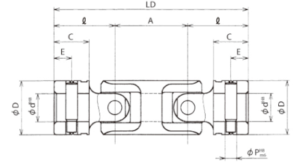

Dimensions (mm)
