Japan, LOBTEX
LOBTEX DSPC STLOCK Socket For P-cone
Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: DSPC

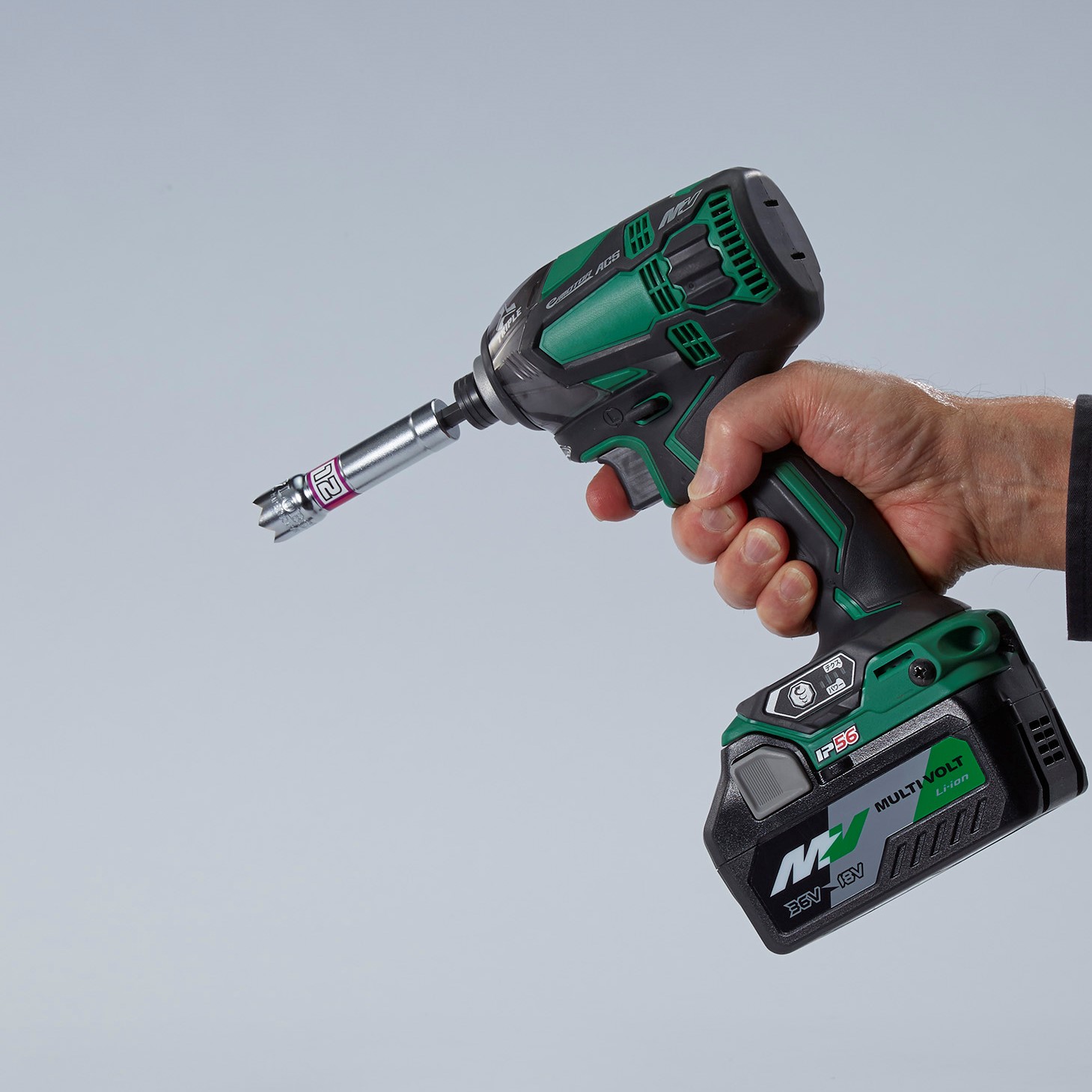

Compatible with 18 V impact screwdriver
Socket for p-cone
Compatible models：18V impact screwdriver.

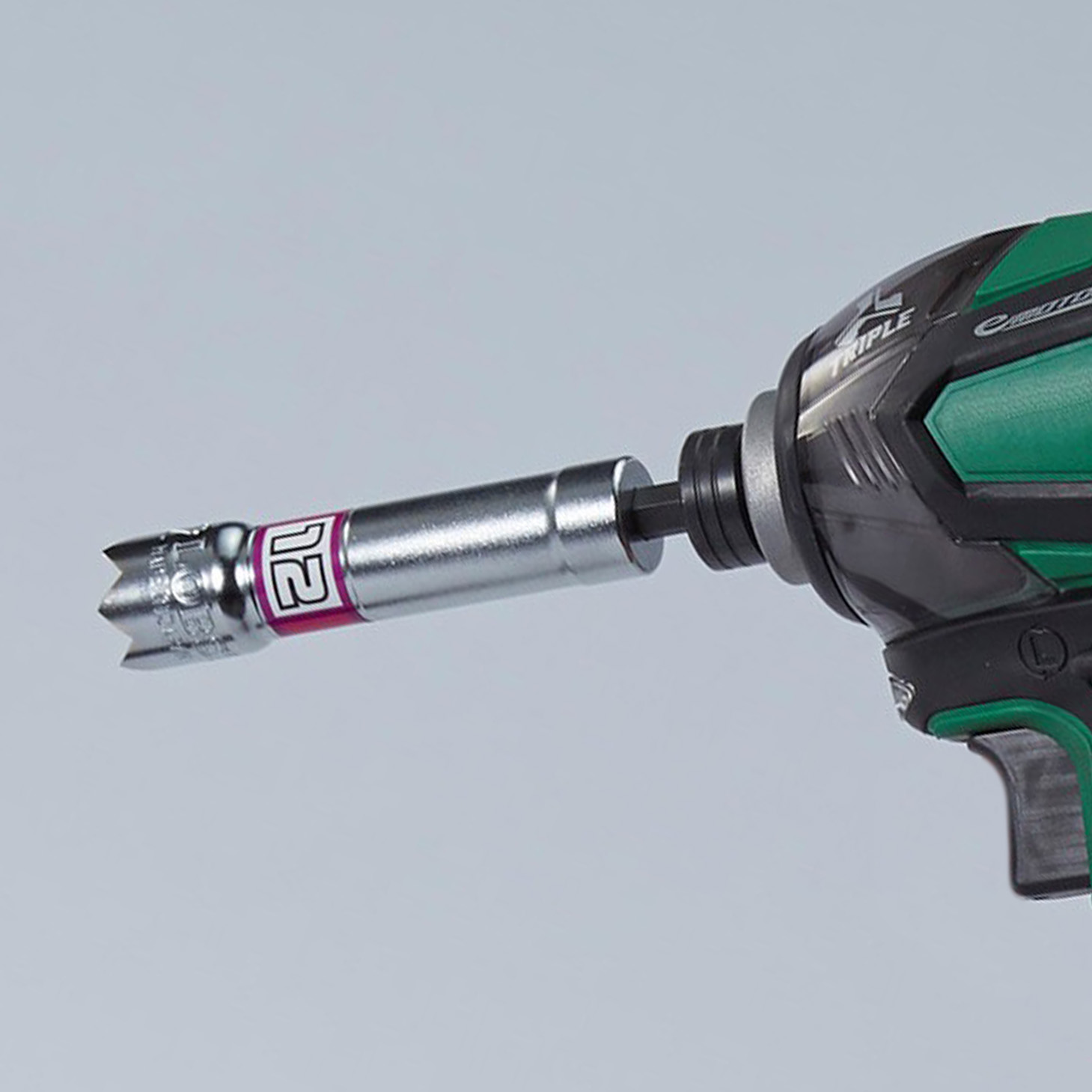

The claw at the tip keeps mortar from adhering to the P-cone, and catches the nut inside.
Torsion/Break resistance and high torque transmission efficiency are obtained when the hexagon shaft is press-fit into the hexagon hole of the socket.
Deep hole type, applicable to long protruding male threads.
Features
●Point
●Opening shape
Specifications

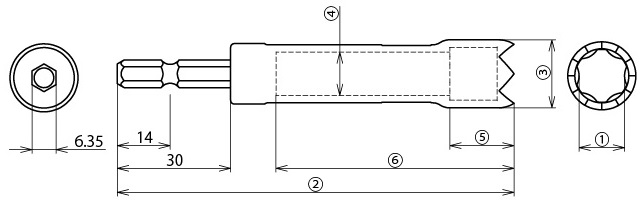

| Model No. | (Product) weight | size1 | size2 | size3 | size4 | size5 | size6 | Retail/User prices | Remark |
|---|---|---|---|---|---|---|---|---|---|
| DSPC | 69g | 12mm | 105mm | 18mm | 11.5mm | 12.5mm | 63mm | open price | opening shape：surface |
CAUTIONS ON INSCRIBED VALUES
Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
Specifications may be changed for improvement of the product without prior notices.
Listed prices do not include VAT. Please ask our distributor in case of purchases.
