Japan, LOBTEX
LOBTEX DSU-S STLOCK Universal Socket
Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: DSU-S: DSU10S, DSU12S, DSU13S, DSU14S, DSU17S, DSU19S, DSU21S, DSU22S, DSU24S

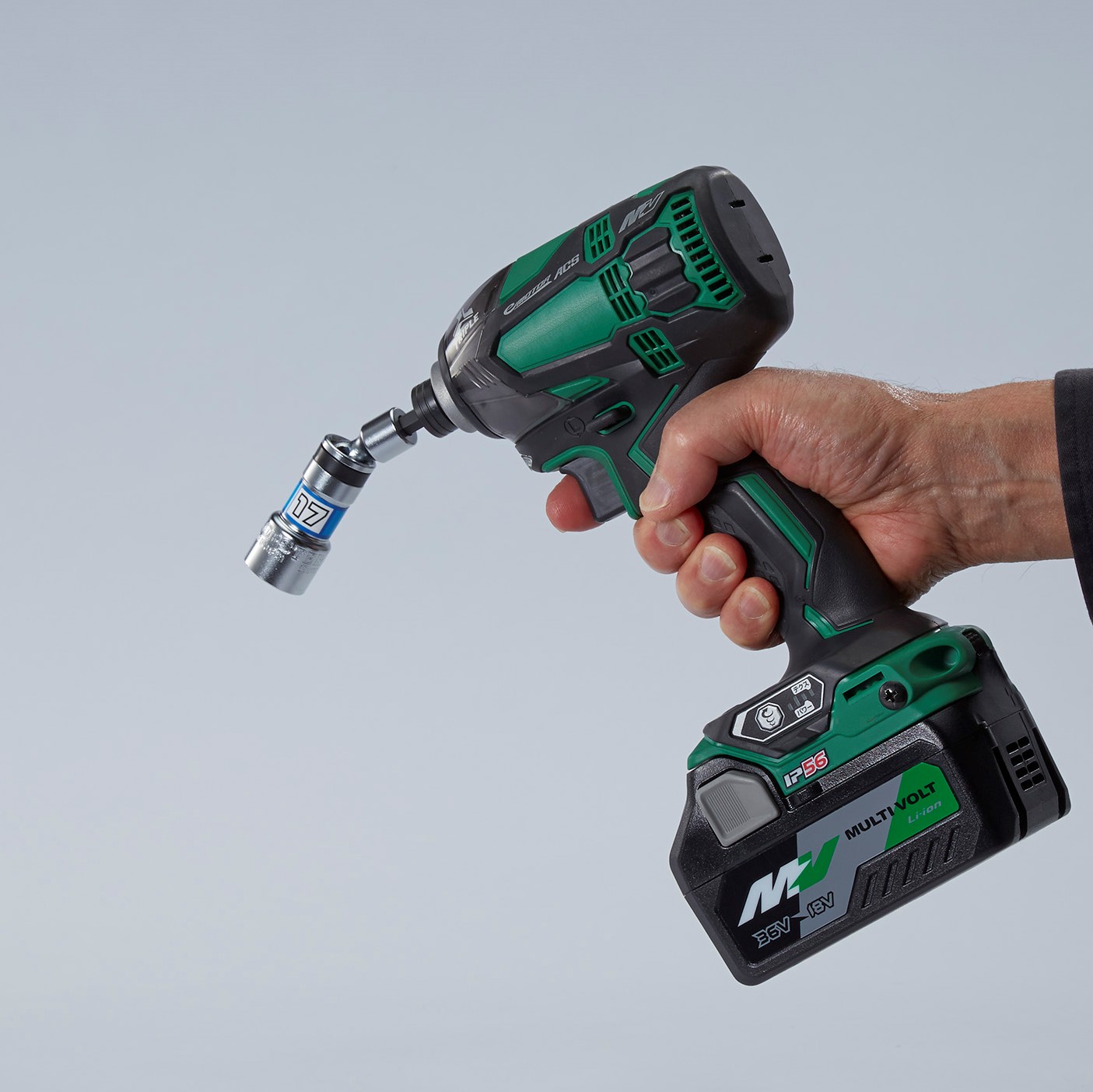

Compatible with 18 V impact screwdriver
Universal socket
Compatible models：18V impact screwdriver.

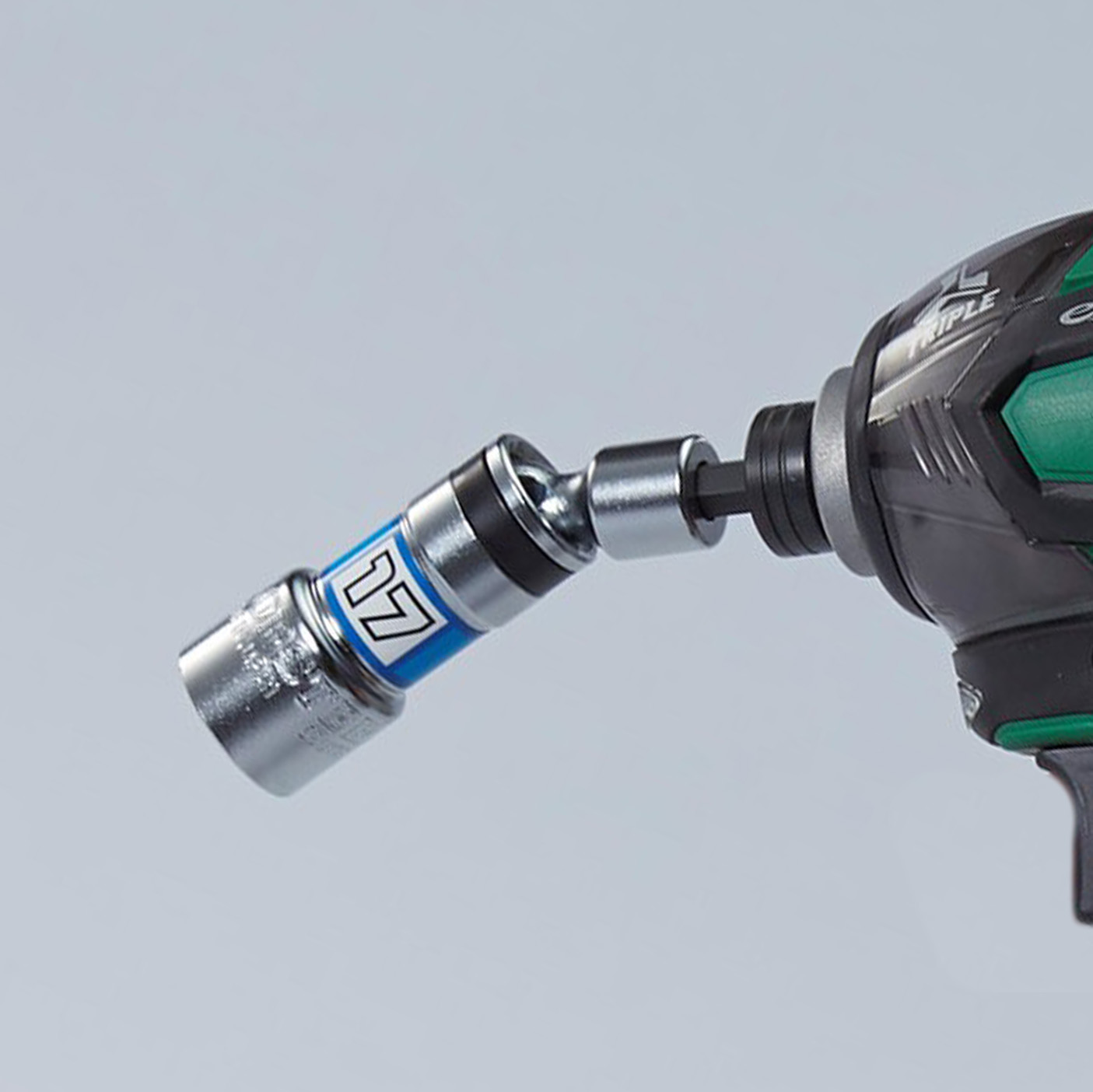

Providing 30°head swing, suitable for work in corners and limited space.
Deep hole type, applicable to long protruding male threads.
Features
●Point
●Opening shape

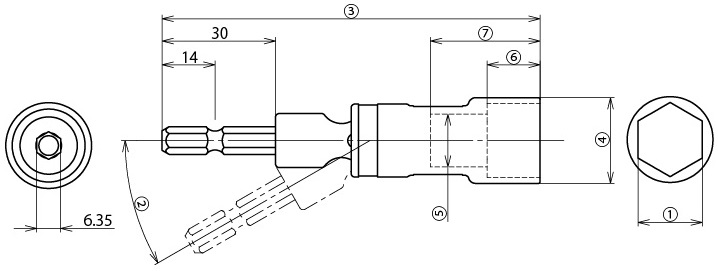

Specifications
| Model No. | (Product) weight | size1 | size2 | size3 | size4 | size5 | size6 | size7 | Retail/User prices | Remark |
|---|---|---|---|---|---|---|---|---|---|---|
| DSU10S | 73g | 10mm | 30° | 100mm | 14.2mm | 8mm | 12mm | 29mm | open price | opening shape：hexagon |
| DSU12S | 77g | 12mm | 30° | 100mm | 16.7mm | 10mm | 14mm | 29mm | open price | opening shape：hexagon |
| DSU13S | 79g | 13mm | 30° | 100mm | 17.7mm | 11mm | 14mm | 29mm | open price | opening shape：hexagon |
| DSU14S | 82g | 14mm | 30° | 100mm | 19.2mm | 12mm | 14mm | 29mm | open price | opening shape：hexagon |
| DSU17S | 87g | 17mm | 30° | 100mm | 22.7mm | 14mm | 14mm | 29mm | open price | opening shape：hexagon |
| DSU19S | 94g | 19mm | 30° | 100mm | 24.7mm | 16mm | 14mm | 29mm | open price | opening shape：hexagon |
| DSU21S | 103g | 21mm | 30° | 100mm | 27.2mm | 18mm | 14mm | 29mm | open price | opening shape：hexagon |
| DSU22S | 104g | 22mm | 30° | 100mm | 28.2mm | 18mm | 14mm | 29mm | open price | opening shape：hexagon |
| DSU24S | 129g | 24mm | 30° | 100mm | 30.5mm | 19mm | 14mm | 29mm | open price | opening shape：hexagon |
CAUTIONS ON INSCRIBED VALUES
Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
Specifications may be changed for improvement of the product without prior notices.
Listed prices do not include VAT. Please ask our distributor in case of purchases.
