LOBTEX LM-S Socket Square Recess

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: LM-S : LM306S, LM307S, LM308S, LM309S, LM310S, LM311S, LM312S, LM313S, LM314S, LM315S, LM317S, LM319S, LM321S, LM322S

This tool set has a wide variation of frequently used socket wrenches. (Drive: 6.35 mm (1/4”) to 12.7 mm (1/2”))

・The wrenches can be selected according to user needs (place of use, work conditions, etc.).
・The socket has been precision-finished to avoid thread deformation.

Use/Application

・Tightening and loosening nuts and bolts

ROHS

Specifications

LM-S

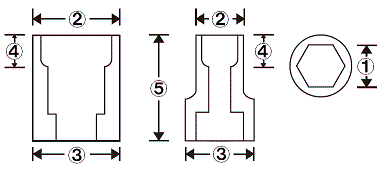

Model No.(Product) weightsize1size2size3size4size5Retail/User pricesRemark
LM306S20g6.0mm9.3mm17.0mm5.0mm26.0mmopen price9.5（3/8″）、6sq
LM307S20g7.0mm10.7mm17.0mm5.0mm26.0mmopen price9.5（3/8″）、6sq
LM308S20g8.0mm11.7mm17.0mm6.0mm26.0mmopen price9.5（3/8″）、6sq
LM309S25g9.0mm13.2mm17.0mm6.0mm26.0mmopen price9.5（3/8″）、6sq
LM310S30g10.0mm14.7mm17.0mm7.0mm26.0mmopen price9.5（3/8″）、6sq
LM311S30g11.0mm15.7mm17.0mm8.0mm26.0mmopen price9.5（3/8″）、6sq
LM312S35g12.0mm17.0mm18.0mm8.0mm26.0mmopen price9.5（3/8″）、6sq
LM313S35g13.0mm18.5mm18.0mm9.0mm27.0mmopen price9.5（3/8″）、6sq
LM314S45g14.0mm19.5mm18.0mm9.0mm27.0mmopen price9.5（3/8″）、6sq
LM317S70g17.0mm23.0mm19.0mm11.0mm30.0mmopen price9.5（3/8″）、6sq
LM319S75g19.0mm26.0mm21.0mm13.0mm32.0mmopen price9.5（3/8″）、6sq
LM321S95g21.0mm28.0mm22.5mm13.0mm32.0mmopen price9.5（3/8″）、6sq
LM322S100g22.0mm30.0mm23.5mm14.0mm33.0mmopen price9.5（3/8″）、6sq

!IMPORTANT SAFETY INSTRUCTIONS

Choose a tool that matches the size of the nut or bolt.
Avoid extending it with pipes or similar objects.
Fully insert nuts and bolts.
Ensure the square drive is inserted to the base.
Do not use this tool as a hammer.
Refrain from striking it with hammers or similar tools.
Avoid using it with power tools like impact wrenches.

!CAUTIONS ON INSCRIBED VALUES

Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
Specifications may be changed for improvement of the product without prior notices.
Listed prices do not include VAT. Please ask our distributor in case of purchases.
