Japan, LOBTEX

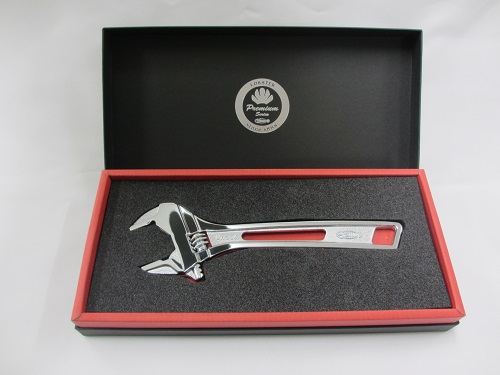

LOBTEX PUM-X Hybrid Adjustable Angle Wrench X Premium Series
Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: PUM-X: PUM30XB, PUM30XS, PUM36XB, PUM36XS
Highly demanded tool that provides quality and functionality of the highest class
“Functional beauty = Advanced function + Beauty”
Functions
①Advanced function Ⅰ: G-LESS (loose grip prevention) mechanism (PAT.)
・The PUM-X was the first among adjustable angle wrenches
to adopt the G-LESS mechanism for resisting looseness in the vertical direction.
②Advanced function Ⅱ:X-DRIVE
・Thanks to the stress relief structure, the new “X-DRIVE” disperses more stress applied to
the edges than the conventional tools. Thus, the X-DRIVE can easily apply torque,
enabling stable tightening and loosing work, without collapsing the edges.
③Advanced function Ⅲ:B-Less (backlash-free) mechanism
・The lower jaw rack is sandwiched by
“Worm A” and “Worm B” to the point that there is no gapping.
④Advanced function Ⅳ:RFH (Round form handle)
・The newly shaped (round) handle easily fits the hand.
⑤Beautiful finish:K-Finish (Mirror finished)
・High-grade chromium plating for corrosion resistance and wear resistance
・Solid, beautiful silver mirror finish and black mirror finish
Specifications
Model No. | (Product) weight | size1 | size2 | size3 | Jaw Capacity | Bolt, nut maximum dimension | Retail/User prices | Remark |
---|---|---|---|---|---|---|---|---|
PUM30XB | 170g | 200mm | 6mm | 12.0mm | 8~30mm | M20 | open price | Specular surface finish(Black)[Discontinued] |
PUM30XS | 170g | 200mm | 6mm | 12.0mm | 8~30mm | M20 | open price | Specular surface finish(Silver) |
PUM36XB | 300g | 245mm | 7mm | 14.0mm | 8~36mm | M24 | open price | Specular surface finish(Black)[Discontinued] |
PUM36XS | 300g | 245mm | 7mm | 14.0mm | 8~36mm | M24 | open price | Specular surface finish(Silver) |
IMPORTANT SAFETY INSTRUCTIONS
・Adjust the width across flats with the bolt or nut firmly gripped at the back of the jaw.
・Turn the wrench toward the lower jaw.
・Do not extend wrenches with a pipe, etc.
・Do not use wrenches as a substitute for a hammer.
・Do not apply impact to wrenches by hitting them with a hammer, etc.
CAUTIONS ON INSCRIBED VALUES
※ Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
※ Specifications may be changed for improvement of the product without prior notices.
※ Listed prices do not include VAT. Please ask our distributor in case of purchases.
