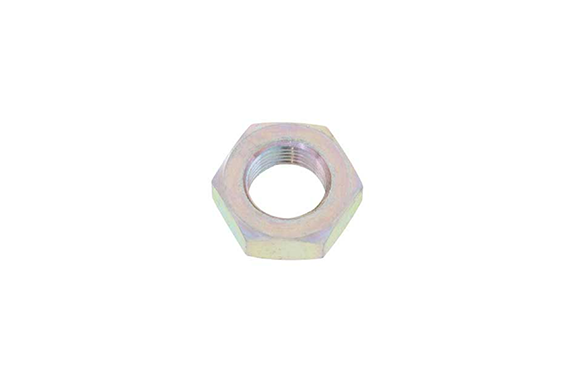

M0-0206 NT (Type 3 (Super))
Model: M0-0206
Iron (or standard), S45C, Stainless steel (303, 304,…).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

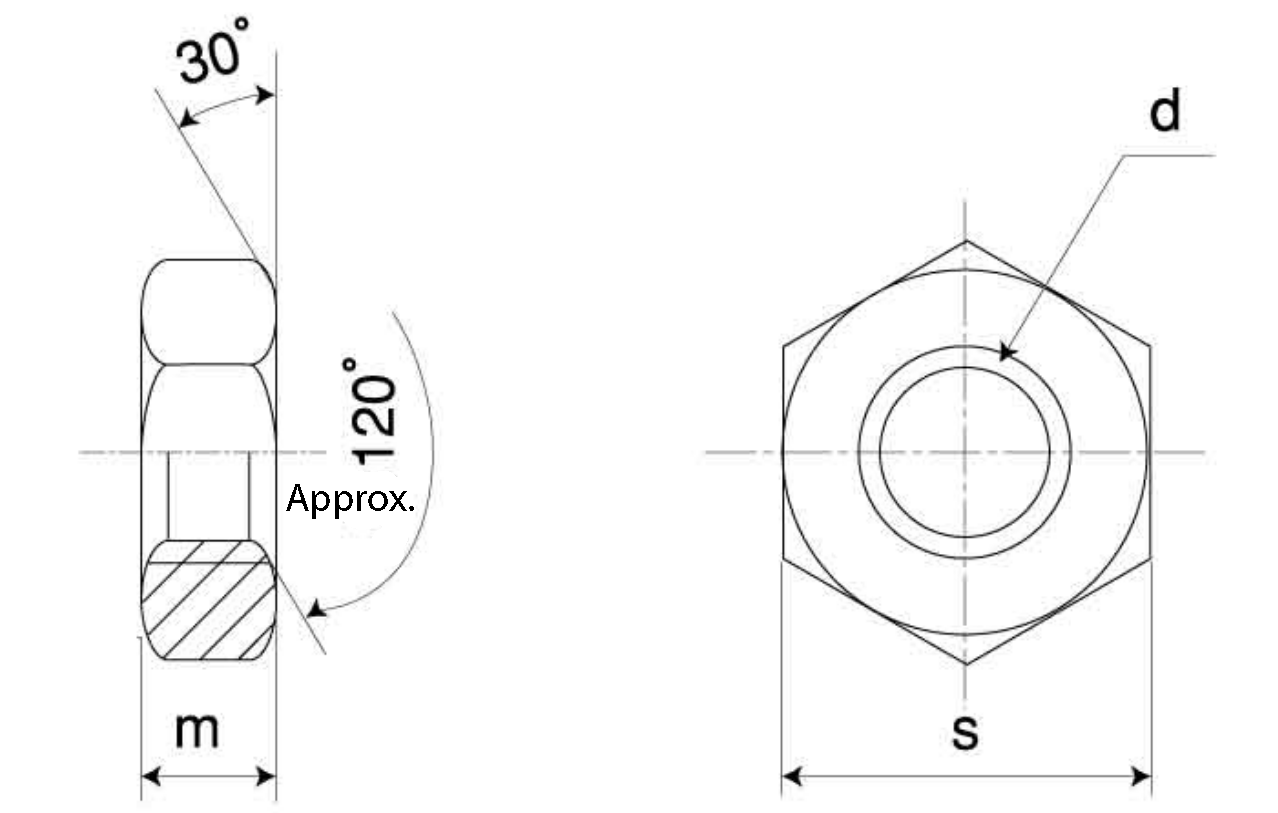

| Nominal Diameter (d) | Pitch | Width Across Flats (s) | Height (m) |
|---|---|---|---|
| M8 | 1.0 | 13 | 5 |
| M12 | 1.0 | 19 | 7 |
| M14 | 1.0 | 22 | 8 |
| M16 | 1.0 | 24 | 10 |
| M18 | 1.0 | 27 | 11 |
| M20 | 1.0 | 30 | 12 |
| M22 | 1.0 | 32 | 13 |
| M24 | 1.0 | 36 | 14 |
| M33 | 1.5 | 50 | 20 |
| M36 | 1.5 | 55 | 21 |
| M39 | 1.5 | 60 | 23 |
| M42 | 1.5 | 65 | 25 |
| M45 | 1.5 | 70 | 27 |
| M48 | 1.5 | 75 | 29 |
| M50 | 1.5 | 77 | 31 |
| M52 | 1.5 | 80 | 31 |
| M56 | 1.5 | 85 | 34 |
| M60 | 1.5 | 90 | 36 |
| M64 | 1.5 | 95 | 38 |
| M68 | 1.5 | 100 | 40 |
| M72 | 1.5 | 105 | 42 |
| M76 | 1.5 | 110 | 46 |
| M80 | 1.5 | 115 | 48 |
