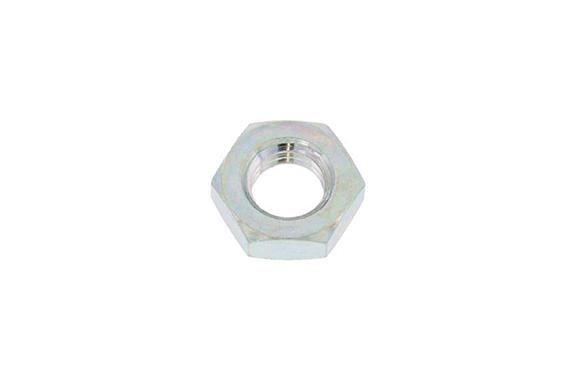

M0-0208 Left NT (Type 3)
Model: M0-0208
Iron (or standard), S45C, Stainless steel (303, 304,…).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

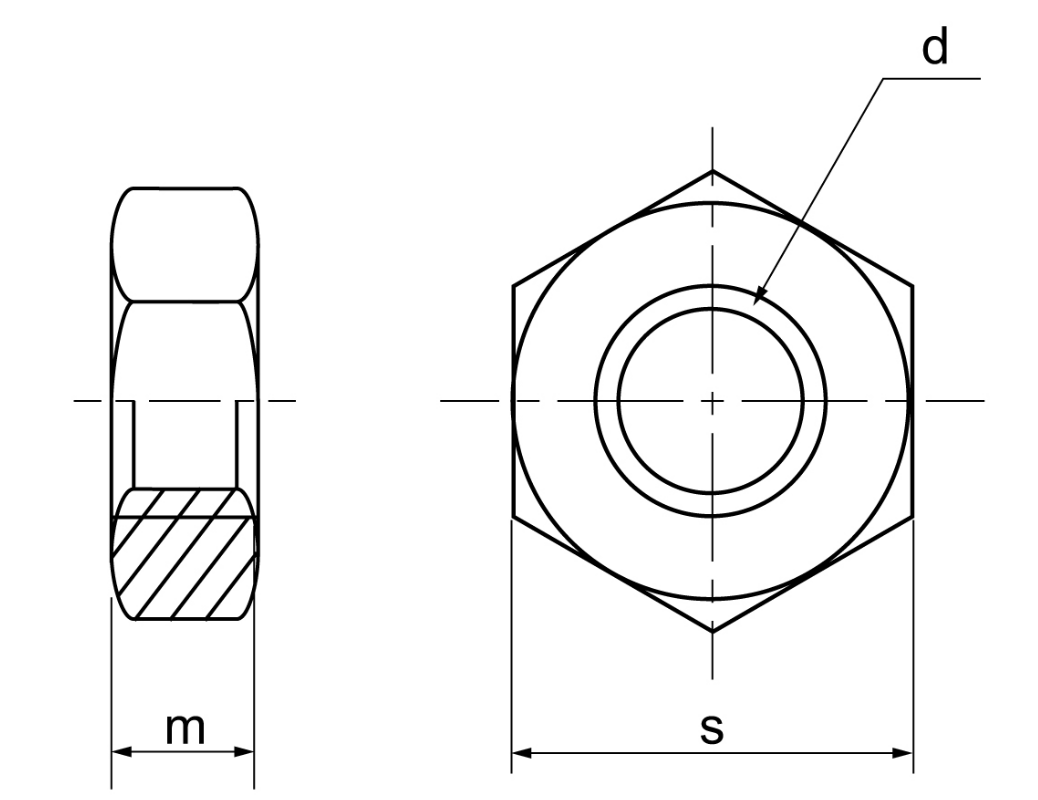

| Nominal Diameter (d) | Width Across Flats (s) | Height (m) |
|---|---|---|
| M3 | 5.5 | 1.8 |
| M4 | 7 | 2.4 |
| M5 | 8 | 3.2 |
| M6 | 10 | 3.6 |
| M8 | 13 | 5 |
| M10 | 17 | 6 |
| M12 | 19 | 7 |
| M14 | 22 | 8 |
| M16 | 24 | 10 |
| M18 | 27 | 11 |
| M20 | 30 | 12 |
| M24 | 36 | 14 |
| M30 | 46 | 18 |
| M33 | 50 | 20 |
| M36 | 55 | 21 |
