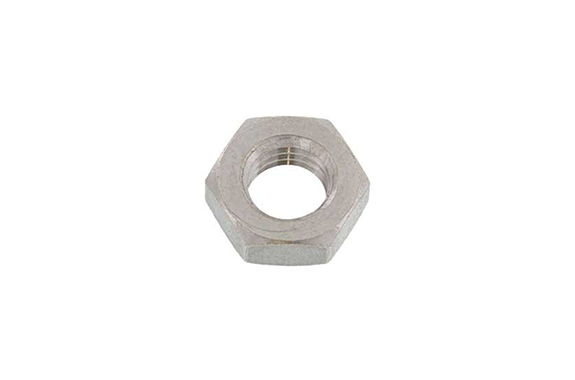

M0-0218 Left NT (Type 3 (Cutting))
Model: M0-0218
Iron (or standard), Stainless steel (303, 304,…), SCM.
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

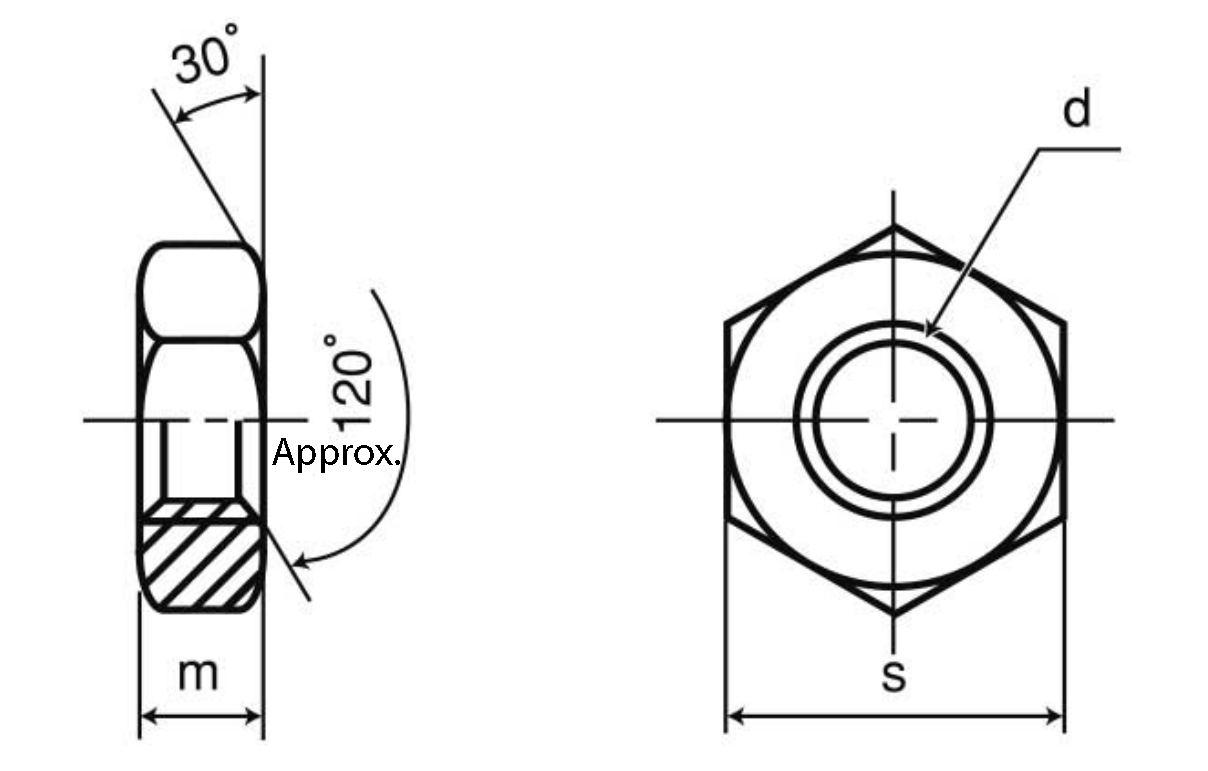

| Thread Nominal (d) | Pitch (Coarse) | Width Across Flats (S) | Height (m) | ||
|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | ||
| M6 | 1.0 | 10 | 0 -0.2 | 3.6 | 0 -0.3 |
| M8 | 1.25 | 13 | 0 -0.25 | 5 | |
| M10 | 1.5 | 17 | 6 | ||
| M12 | 1.75 | 19 | 0 -0. 35 | 7 | 0 -0.36 |
| M14 | 2.0 | 22 | 8 | ||
| M16 | 2.0 | 24 | 10 | ||
| M18 | 2.5 | 27 | 11 | 0 -0.43 | |
| M20 | 2.5 | 30 | 12 | ||
| M22 | 2.5 | 32 | 0 -0.4 | 13 | |
| M24 | 3.0 | 36 | 14 | ||
| M27 | 3.0 | 41 | 16 | ||
| M30 | 3.5 | 46 | 18 | ||
| M33 | 3.5 | 50 | 20 | 0 -0.52 | |
| M36 | 4.0 | 55 | 0 -0.45 | 21 | |
| M39 | 4.0 | 60 | 23 | ||
| M42 | 4.5 | 65 | 25 | ||
| M48 | 5.0 | 75 | 29 | ||
