M0-0520 Small N (Type 3)
Model: M0-0520
Iron (or standard), brass, Stainless steel (303, 304,…), S45C.
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

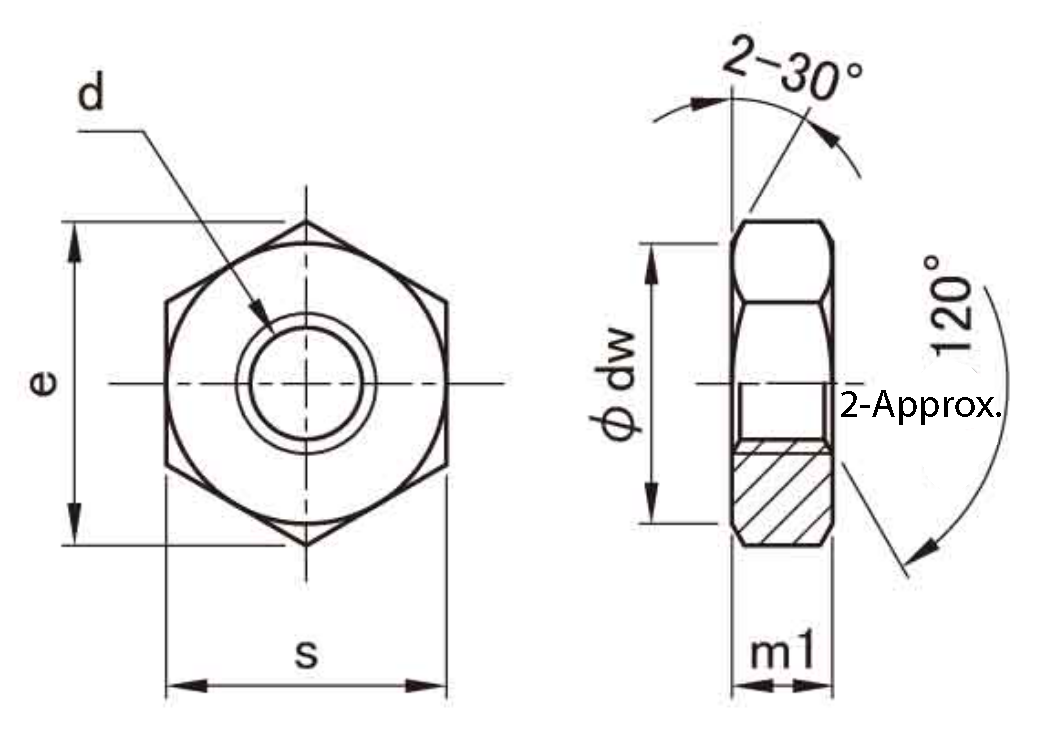

| Nominal Diameter (d) | Pitch | m1 | S | e (Approx.) | dk/dw (Approx.) | ||
|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | ||||
| M8 | 1.25 | 5 | 0 -0.43 | 12 | 0 -0.7 | 13.9 | 11.5 |
| M10 | 1.5 | 6 | 0 -0.48 | 14 | 16.2 | 13.5 | |
| M12 | 1.75 | 7 | 0 -0.53 | 17 | 19.6 | 16.5 | |
| M14 | 2 | 8 | 19 | 0 -0.8 | 21.9 | 18 | |
| M16 | 2 | 10 | 22 | 25.4 | 21 | ||
| M18 | 2.5 | 11 | 0 -0.70 | 24 | 27.7 | 23 | |
| M20 | 2.5 | 12 | 27 | 31.2 | 26 | ||
| M22 | 2.5 | 13 | 30 | 34.6 | 29 | ||
| M24 | 3 | 14 | 32 | 0 -1.0 | 37.0 | 31 | |
| M27 | 3 | 16 | 36 | 41.6 | 34 | ||
| M30 | 3.5 | 18 | 41 | 47.3 | 39 | ||
