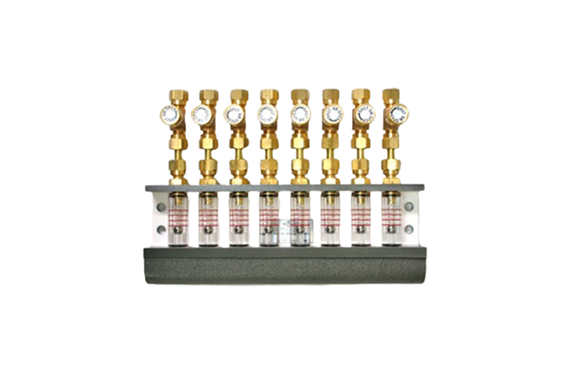

MAEDA KOKI FITV Type Flow Indicator
Manufacturer: Maeda Machinery Research Institute Ltd.
Model : FITV type
Features
It distribute a fluid and can see the flow, too.
It can distribute a fluid between each branch pipe.
It can produce it from a distribution branch pipe of two to 14 from a distribution branch pipe.
It can confirm fluid flow by viewing.
With flow quantity adjustment valve, using the indication red line of the taper transparence pipe as an indication the position of the ball.
It can adjust the valve of each branch pipe while seeing it.
※In the case of an order, an estimate □Please appoint the inside of this.
The number of branch pipes Book (2-14) | FITV- | Branch pipe connection method (φ 6, φ 8, φ 10) (Rc1/8,Rc1/4,Rc3/8) (R1/8,R1/4,R3/8) | Flow quantity of each branch pipe L/min | Kind of the oil (or viscosity cSt of the oil) |
An example: Kind ISOVG32 of the flow quantity 1L oil of each 8FITV-Rc1/8 branch pipe
Standard specifications
Holder | FC20 |
Coupling | C3604 |
Transparent taper pipe | Acrylic |
Ball | SUJ or nylon |
Adapter | C3604 |
O ring | Nitrile rubber |
Spring | SUS304 |
Communication pipe | C3604 |
Miniature valve | BC |
