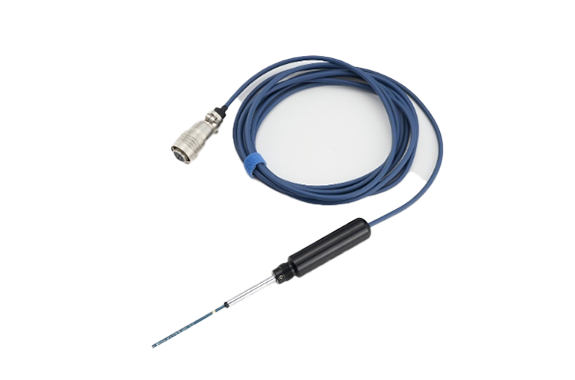

Magnix FS-Series Probe (Transverse Type)
Manufacturer: MAGNIX Co.,Ltd.
Model: FS-Series
Features
Magnetic field measurement probe
GaAs Hall sensors have the advantages of a small temperature coefficient of sensitivity when operating at a constant current, good linearity with respect to magnetic field strength, and excellent high-frequency characteristics.If there is no product of the type that suits your purpose, we can also manufacture it according to your specifications.

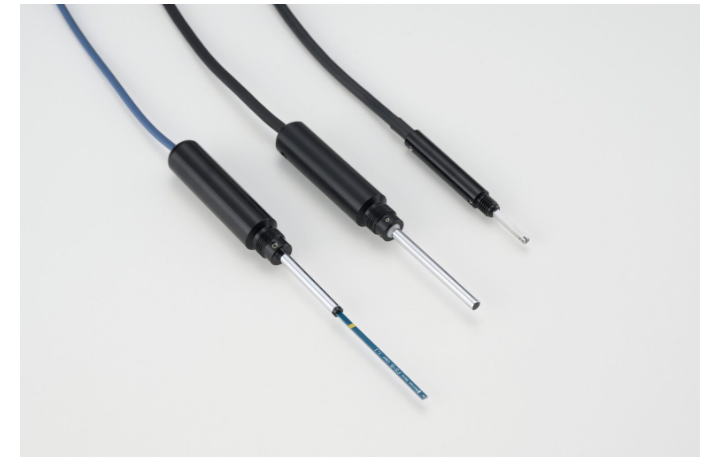

Three types of probes
From the left, there is a transverse type, an axial type, and a rectangular multi-dimensional probe.
Transverse type: A flat probe suitable for measuring in narrow places.Axial type: A probe suitable for measuring by standing it perpendicular to the magnet surface.
Rectangular multi-dimensional probe: A probe that can measure magnetic fields in three directions at once.
Specification
| FS-5 | FS-6 | FS-7 | FS-8 | FS-11 | |
| Main use | General-purpose | For narrow gaps | For narrow gaps | For narrow gaps | General-purpose |
| Hall element | GaAs | ||||
| Magnetically sensitive area | 50 x 50μm | ||||
| Measurement range | 0 to 3T | ||||
| Operating temperature range | -20 to +60°C | ||||
| Tip Dimensions | Contact us | 0.7tx2mm | |||
| Shaft material | Cu (copper) | ||||
| Cable length | 3m (standard) | ||||
