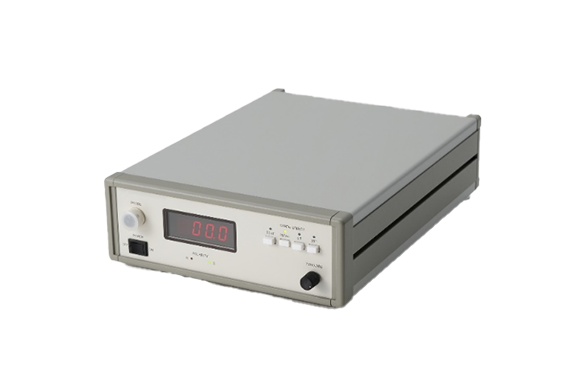

Magnix HGM3-Series Tesla Meter
Manufacturer: MAGNIX Co.,Ltd.
Model: HGM3-Series
Our proprietary switching drive system compensates for secular changes, which are the basis of measurement.
It also supports transient measurement of AC magnetic fields.
Equipped with a circuit that reduces measurement errors caused by electromagnetic induction, it ensures stable measurement with minimal error even over long periods of time.
Our proprietary technology eliminates the need for daily calibration using a standard magnet.
Features HGM3-Series

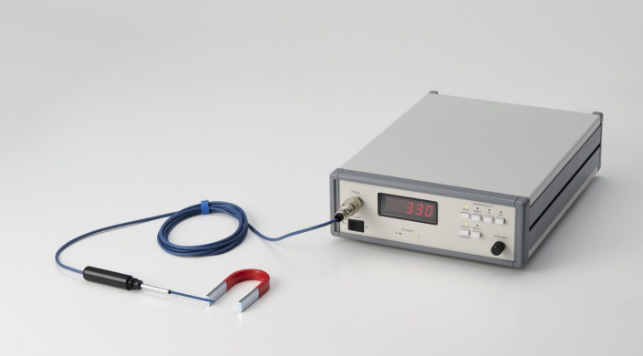

Tesla meter usage example
Specification
| HGM3-3000P | HGM3-4000 | HGM3-8300AN | HGM-9300RS | |
| Number of input channels | 1 channel | 1 channel | 1 channel | 3 channels |
| Measurement Range | 30mT, 300mT, 3T, 30T (4 ranges) | 20mT, 200mT, 2T, 20T (4 ranges) | 5mT, 10mT, 20mT, 50mT (4 ranges) | 2mT, 20mT, 200mT, 2T (4 ranges) |
| Measurement value display | 4-digit digital panel meter displays the effective value when AC is selected. | Displayed on a 4-digit digital panel meter | Displayed on a 4-digit digital panel meter | Displayed on a 3.5-digit digital panel meter |
| minimum resolution | 0.01mT | 0.01mT | 0.01mT | 0.001mT |
| Measurement accuracy | Within ±0.5% (full scale) | Within ±0.5% (full scale) | Within ±0.5% (full scale) | Within ±0.5% (full scale) |
| Standard Output Voltage | ±3V/full scale (voltage specifications can be changed) | ±5V/full scale (voltage specifications can be changed) | ±10V or ±5V switchable/full scale for each range | ±5V/full scale |
| Frequency Range | DC to 500Hz, AC 20 to 500Hz | DC to 1 kHz | DC to 1 kHz | DC to 15Hz |
| Operating temperature range | 0 to +50°C | 0 to +50°C | 0 to +50°C | 0 to +50°C |
| polarity display | Displayed by two LEDs (N pole: red, S pole: green) | Displayed by two LEDs (N pole: red, S pole: green) | Displayed by two LEDs (N pole: red, S pole: green) | Displayed by two LEDs (N pole: red, S pole: green) |
| External Control | No function | No function | Input range switching control | No function |
| power supply | AC100V±10% | AC100V±10% | AC100V±10% | AC100V±10% |
| External dimensions | 260x98x370 (W x H x D) | 260x98x370 (W x H x D) | 260x98x370 (W x H x D) | 480x149x254.2 (W x H x D) |
| Weight | Approximately 4 kg | Approximately 4 kg | Approximately 4 kg | Approximately 6 kg |
