This capacitor-type magnetizing power supply uses the energy charged in a capacitor to instantly generate a magnetic field (pulse).
Magnix

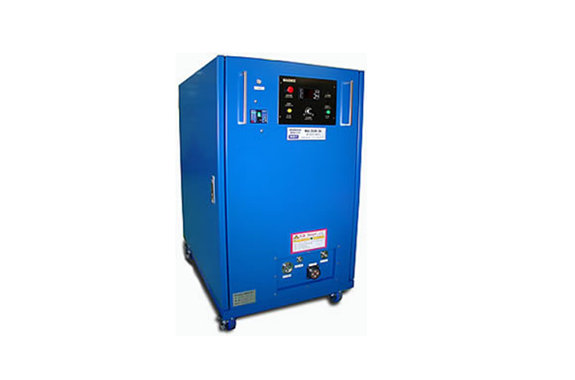

Magnix MAG Series Capacitor-Type Magnetizing Power Supply
Manufacturer: MAGNIX Co.,Ltd.
Model: MAG Series
Features of MAG Series
Built-in peak current meter with digital comparator function
By comparing the peak current after energization, it is possible to judge whether the magnetization state is good or bad.
The judgment result can be output externally as a GO or NG signal (relay output).
Constant current control is use the charging circuit
Stable charging control is require for magnetization.
Stable operation is achieve without depending on the power supply frequency use
Specification
| Maximum charging voltage (V) | Capacitor capacity (μF) | Model | Applicable use |
|---|---|---|---|
| 1500 | 600 | MAG-1506 | Multi-pole magnetization of motors (stepping motors, spindle motors, servo motors) used for CD-ROMs, DVDs, etc. Multi-pole magnetization of sensor magnets for magnetic encoders, FGs, etc. |
| 800 | MAG-1508 | ||
| 1000 | MAG-1510 | ||
| 2500 | 1000 | MAG-2510 | |
| 2000 | MAG-2520 | It can magnetize all kinds of magnetic materials, including samarium cobalt, alnico, ferrite, rare earth (sintered, bonded), neodymium magnets, etc. It is ideal for magnetizing individual magnets with a large BH energy product using air-core coils, as well as for built-in magnetization (inner and outer surfaces) of large motors and large generators. | |
| 3000 | MAG-2530 | ||
| 4000 | MAG-2540 | ||
| 3500 | 2000 | MAG-3520 | |
| 3000 | MAG-3530 | ||
| 4000 | MAG-3540 | ||
| 4500 | 3000 | MAG-4530 | |
| 4000 | MAG-4540 |
