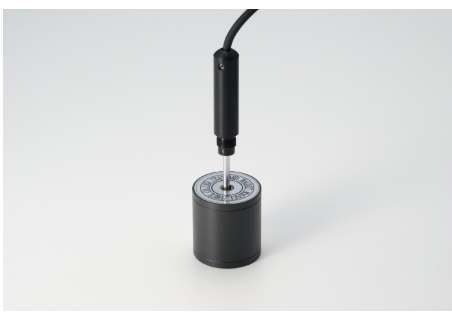

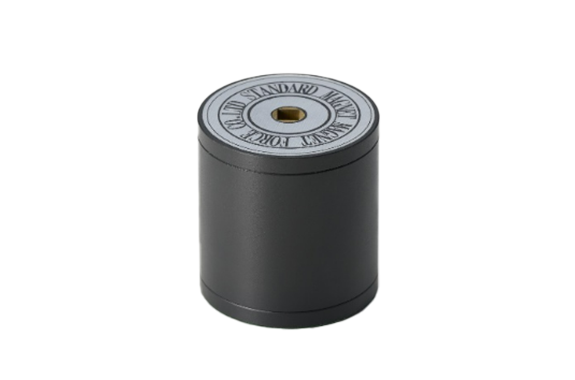

Magnix TSM Series Standard Magnets (Axial/Transverse)
Manufacturer: MAGNIX Co.,Ltd.
Model: TSM Series
This is a standard magnet that can obtain a strong air gap magnetic field despite its small size thanks to its highly efficient magnetic circuit and high machining precision.
Features
By using Alnico magnets, the product is highly stable and is hardly affected by temperature characteristics or aging.
There is almost no magnetic field leaking to the outside, making it easy to store.
A certificate of authenticity is include as standard. Special specifications are available, so please contact us for more information
Specification
| TSM-※A | TSM-※T | |
| Compatible Hall Probes | Our axial type probe | Our transverse type probe |
| Insertion port size | Φ5.1mm | W4-6mm x H2-2.5mm |
| Generated magnetic field | 5mT to 100mT | 100mT to 300mT |
| Operating temperature range | 21°C±2 | |
