MALHATY PUMP MFG.CO.

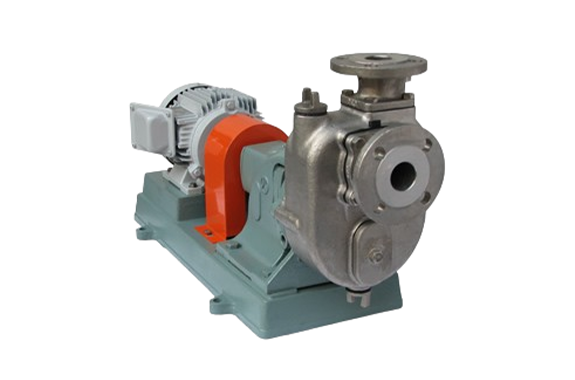

Malhaty Pump 2FGS, 2FHS Medium, High Head
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: 2FGS, 2FHS
Features
- With an integrated function to separate air and water.
- These models can pump up liquids below the pump’s position once the pump is filled at the first operation.
- Excellent self-priming ability.
Materials
| 2FHS-27 2FGS-27 | 2FHS-32 2FGS-32 | 2FHS-16 2FGS-16 | |
|---|---|---|---|
| Casing | SCS13 | SCS14 | SCS16 |
| Impeller | SCS13 | SCS14 | SCS16 |
| Shaft | SUS304 | SUS316 | SUS316L |
| Cover Packaing | PTFE | ||
| Check Valve | NBR/FKM/PTFE | ||
Specification
| Bore | 25×25mm ～ 65×65mm |
| Discharge Volume | 40L/min 〜 500L/min |
| Total Head | 4.5m ～ 37m |
| Shaft Seal | Mechanical Seal/Gland Packing |
| Motor pole | 2P（2900min⁻¹/50Hz 3500min⁻¹/60Hz) |
