MALHATY PUMP MFG.CO.

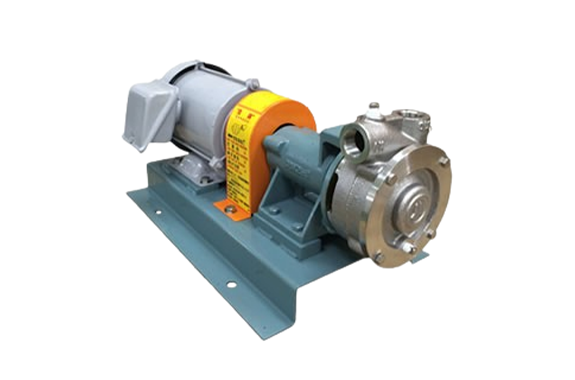

Malhaty Pump CBX2
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: CBX2
Features
- Easily transfer hot water and low-boiling liquids.
- Low NPSH-Re prevents cavitation.
- It is quiet with no high-frequency sound.
- The shaft seal uses a mechanical seal.
Standard Material: SiC×SiC/PTFE - Built-in air discharge mechanism
Materials
| CBX2-27M | CBX2-32M | |
|---|---|---|
| casings | SCS13 | SCS14 |
| cover | SCS13 | SCS14 |
| Impeller | SUS304 | SUS316 |
| shaft | SUS304 | SUS316 |
| Cover Packing | PTFE | |
Specification
| caliber | 15×15mm ～ 32×32mm |
| Spit out | 2L/min 〜 80L/min |
| Full head | 7m 〜 30m |
| Shaft sealing method | Mechanical seal system |
| Number of motor poles | 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz) |
