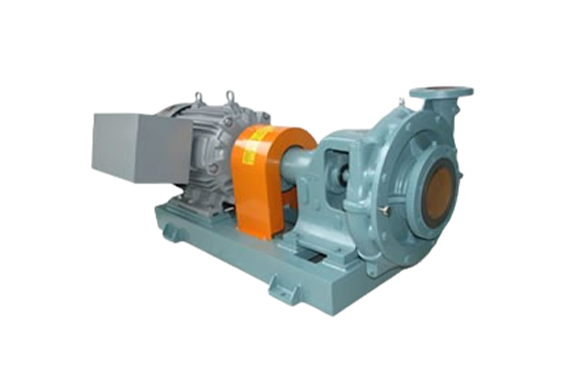

Malhaty Pump CHS
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: CHS
Features
- CHS is firmly supported with a bracket with legs. So the vibration from the piping does not directly affect the pump’s bearing and motor.
- Semi open type impeller is also available at your request.
Materials
| CHS | |
|---|---|
| Casing | FC200 |
| Impeller | FC200 |
| Shaft | S45C |
| Sleeve | SUS304 |
| Cover Packing | NBR |
※The standard material is cast iron. Stainless steel casing SCS13/SCS14 and other special materials are available upon request.
Specification
| Bore | 125×125mm 〜 300×250mm |
| Discharge Volume | 1200L/min 〜 14000L/min |
| Total Head | 7m 〜 73m |
| Shaft Seal | Mechanical Seal/Gland Packing |
| Motor Pole | 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz) 2P（2900min⁻¹/50Hz 3500min⁻¹/60Hz) |
