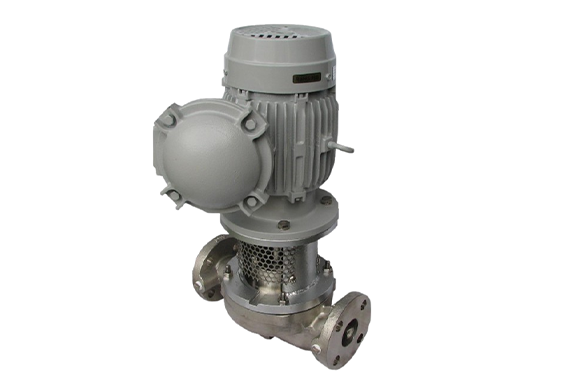

Malhaty Pump Explosion Proof Motor Type 2PMC, 2PHC, 2PLC
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: 2PMC, 2PHC, 2PLC
Features
- Small installation area to integrate into pipelines.
- The back pull-out type enables easy disassembly and inspection without disconnecting piping.
- These models can transfer flammable liquids and be used in explosion-proof areas.
Materials
| 2PMC-27 2PHC-27 2PLC-27 | 2PMC-32 2PHC-32 2PLC-32 | 2PMC-16 2PHC-16 2PLC-16 | |
|---|---|---|---|
| Casing | SCS13 | SCS14 | SCS16 |
| Impeller | SCS13 | SCS14 | SCS16 |
| Shaft | SUS304 | SUS316 | SUS316L |
| Cover Packing | PTFE | PTFE | PTFE |
Specification
| Bore | 32×32mm ～ 100×100mm | |
| Discharge Volume | 40L/min 〜 1200L/min | |
| Total Head | 6m 〜 50m | |
| Shaft Seal | Mechanical seal/Gland packing | |
| Motor pole | 2P（2900min⁻¹/50Hz 3500min⁻¹/60Hz) | |
