MALHATY PUMP MFG.CO.

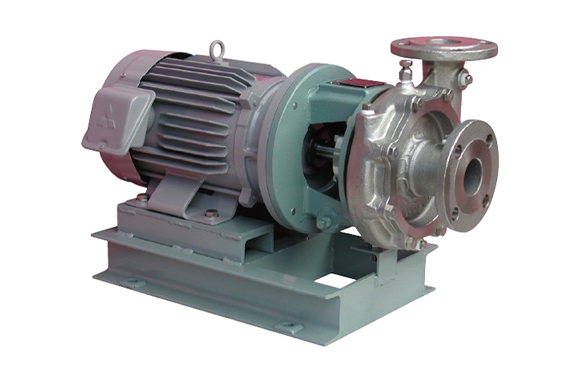

Malhaty Pump FFH2, 2FFH
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: FFH2, 2FFH
Features
- The integrated motor requires no alignment.
- Saving space and light weight.
- Mechanical seals in various materials are available to match your liquids.
Materials
| FFH2-27M 2FFH-27M | FFH2-32M 2FFH-32M | |
|---|---|---|
| Casing | SCS13 | SCS14 |
| Impeller | SCS13 | SCS14 |
| Shaft | SUS316 | SUS316 |
| Cover Packing | PTFE | |
Specification
| Bore | 40×40mm 〜 80×80mm |
| Discharge Volume | 80L/min 〜 1000L/min |
| Total Head | 7m 〜 53m |
| Shaft Seal | Mechanical seal |
| Motor pole | 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz) 2P（2900min⁻¹/50Hz 3500min⁻¹） |
