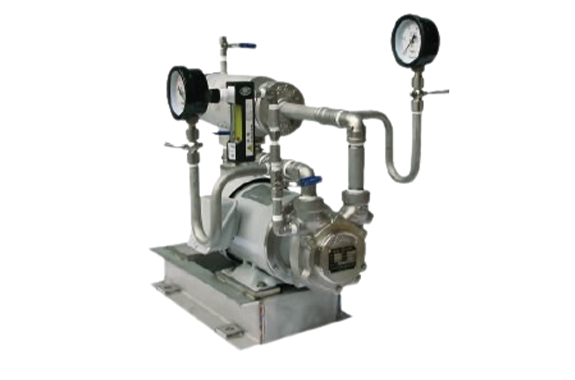

Malhaty Pump Fine Bubble Generators
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Features
The fine bubbles can be generated by the internal stirring action even if gas is mixed in about 10% of the discharge volume.
The demonstration unit is available. Please feel free to contact us.

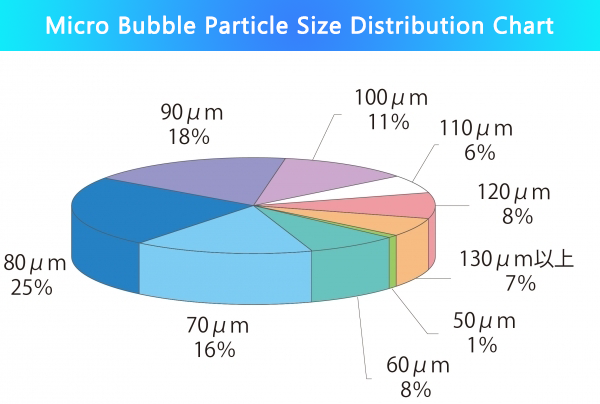

※fine bubble average size：80.63μm
Amount of ultrafine bubbles (bubbles <1 µm in diameter) generated.
Fine bubble | 0.3MPa | 0.4MPa | 0.5MPa | 0.6MPa |
|---|---|---|---|---|
| Ultrafine bubble concentration (pcs/mL) | 9.98×10⁷ | 8.48×10⁷ | 6.88×10⁷ | 6.98×10⁷ |
*Ultra fine bubble average particle size: 83.0 nm.
- Test conditions: fresh water in a 44 L water tank, fine bubbles generated by Model MBT-203 at an AIR volume of 1.5 L/min and discharge volume of 1.5 L/min, and circulated for 5 minutes.
After stopping, the fresh water was sampled after the microbubbles had completely surfaced. - The water was then taken to the following measuring institute and the values were measured four hours after sampling.
Measured by: Izumitec Corporation (Fine Bubble Industries Association test laboratory, registration number DTU1712001) Measuring equipment: NanoSight NS3000. - “Fine Bubble” and “Ultra Fine Bubble” are registered trademarks of the FBIA.
